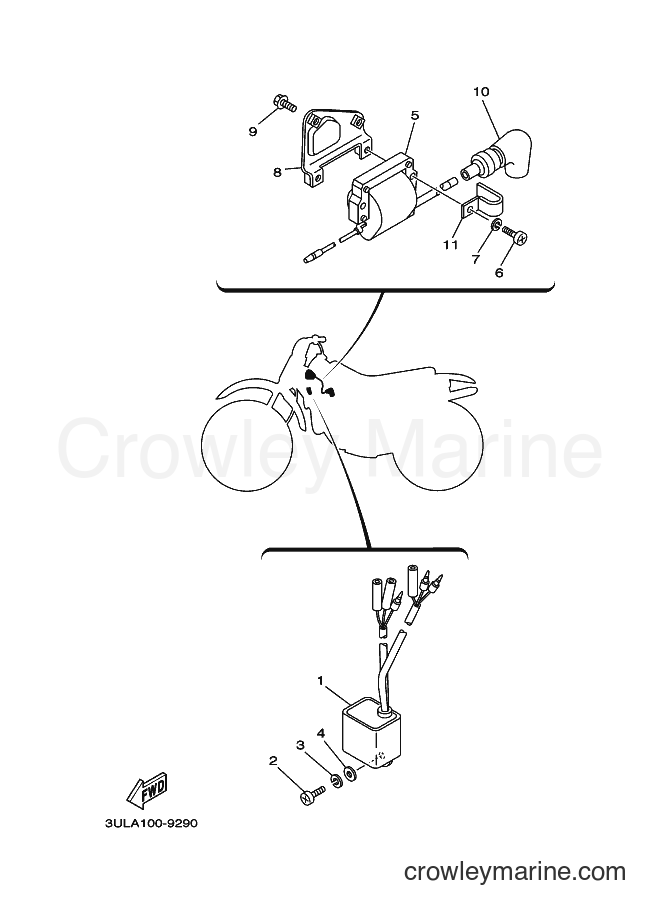

2000 Dirt Bike RT100 - RT100 (3ULB) [030] ELECTRICAL 1 diagram
![Yamaha Motors RT100 (3ULB) [030] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/fmDZJ9HS.png)
1
Yamaha Motors
CDI UNIT ASSEMBLY3T0-85540-20-00
Required: 1
C.D.I. UNIT ASSY
$189.44
You save $33.43
2
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
$2.96
You save $0.52
3
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
In stock
Only 1 remaining
$1.10
You save $0.20
4
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
5
Yamaha Motors
IGNITION COIL ASSEMBLY355-82310-40-00
Required: 1
IGNITION COIL ASSY
Supersedes: 5X1-82310-41-00
$180.19
You save $31.80
6
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$2.00
You save $0.35
7
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
8
Yamaha Motors
Ignition Coil Bracket336-82316-01-00
Required: 1
BRACKET, IGNITION COIL
$18.69
You save $3.30
9
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
5+ in stock
$1.66
You save $0.29
10
Yamaha Motors
Obsolete Yamaha Part8DG-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 1M1-82370-30-00
$45.89
You save $8.10
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
