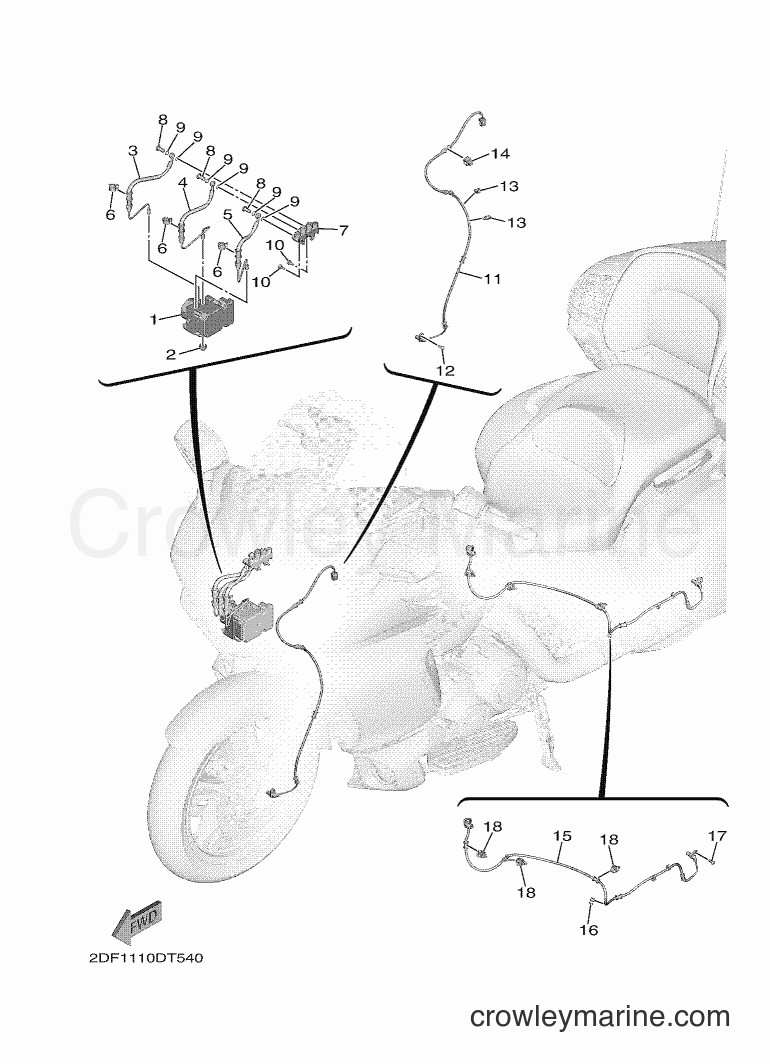

2018 Cruiser XV1900FDD - XV1900FDD (2DF4) [010] ELECTRICAL 4 diagram

1
Yamaha Motors
HYDRAULIC UNIT ASSEMBLY2DF-85930-09-00
Required: 1
HYDRAULIC UNIT ASSY
$1130.49
You save $199.50
$3.57
You save $0.63

3
Yamaha Motors
BRAKE PIPE 22DF-25882-00-00
Required: 1
PIPE, BRAKE 2
$45.89
You save $8.10

4
Yamaha Motors
Brake Pipe2DF-2588A-00-00
Required: 1
PIPE, BRAKE 4
$45.89
You save $8.10

5
Yamaha Motors
BRAKE PIPE 32DF-25883-00-00
Required: 1
PIPE, BRAKE 3
$45.04
You save $7.95
$8.92
You save $1.57
$46.74
You save $8.25
$5.52
You save $0.97
$8.07
You save $1.42

10
Yamaha Motors
DEEP FLANGE BOLT95D37-06014-00
Required: 2
BOLT, FLANGE DEEP RECESS
$0.51
You save $0.09

11
Yamaha Motors
WHEEL SENSOR ASSEMBLY2DF-85970-00-00
Required: 1
WHEEL SENSOR ASSY, FRONT
$125.79
You save $22.20

12
Yamaha Motors
Button head bolt92012-06016-00
Required: 1
BOLT, BUTTON HEAD
$8.07
You save $1.42
$8.07
You save $1.42
$1.23
You save $0.22

15
Yamaha Motors
WHEEL SENSOR ASSY, REAR2DF-85980-01-00
Required: 1
WHEEL SENSOR ASSY, REAR
Supersedes: 2DF-85980-00-00
$177.64
You save $31.35
$7.22
You save $1.27

17
Yamaha Motors
Button head bolt92012-06016-00
Required: 1
BOLT, BUTTON HEAD
$8.07
You save $1.42
$1.83
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
