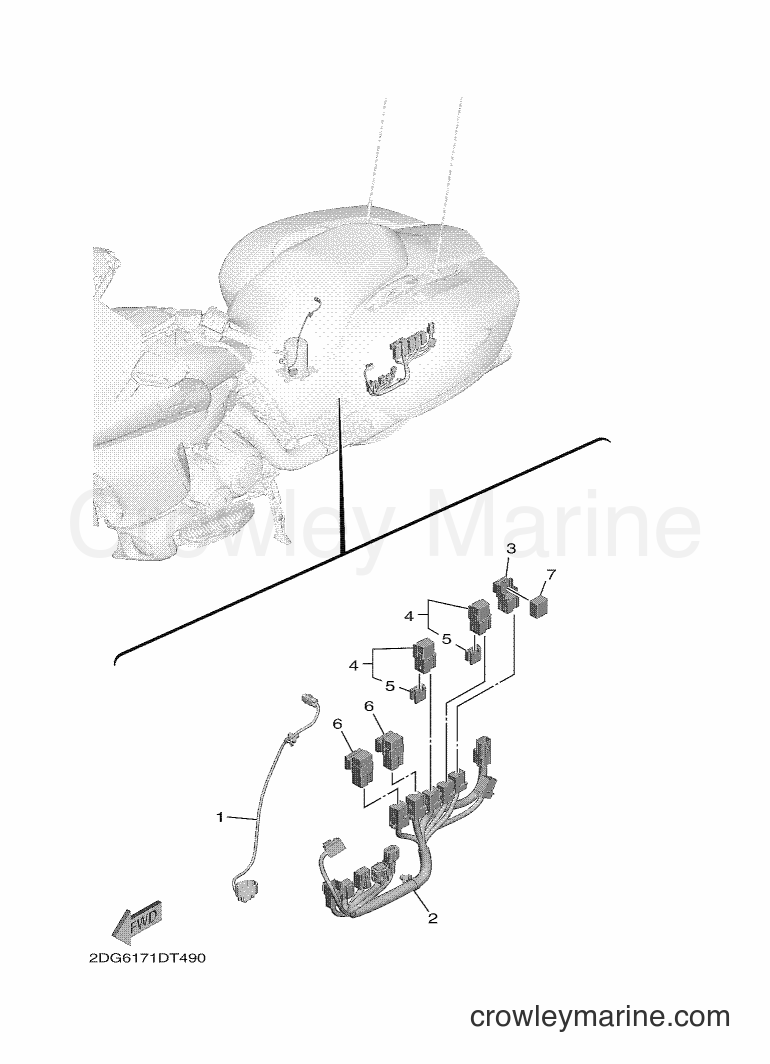

Yamaha Motors XV1900CFD (2DG6) [010] - ELECTRICAL 3
Change View:
LEAD WIRE
1
Yamaha Motors
LEAD WIRE2DF-86177-00-00
Required: 1
WIRE, LEAD 7
Cross Ship
Leaves in 2-5 days
$16.99
$14.44
You save $2.55
More details
LEAD 5 WIRE
2
Yamaha Motors
LEAD 5 WIRE2DF-86175-00-00
Required: 1
WIRE, LEAD 5
Cross Ship
Leaves in 2-5 days
$114.99
$97.74
You save $17.25
More details
Relay Holder
3
Yamaha Motors
Relay Holder8HG-81952-00-00
Required: 1
HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$3.95
$3.36
You save $0.59
More details
Starter Relay
4
Yamaha Motors
Starter Relay1TP-81950-00-00
Required: 2
RELAY ASSY (1TP-00)
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
RELAY HOLDER
5
Yamaha Motors
RELAY HOLDER5EA-81952-00-00
Required: 1
. HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plate Damper
7
Yamaha Motors
Plate Damper90520-15015-00
Required: 1
DAMPER, PLATE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
