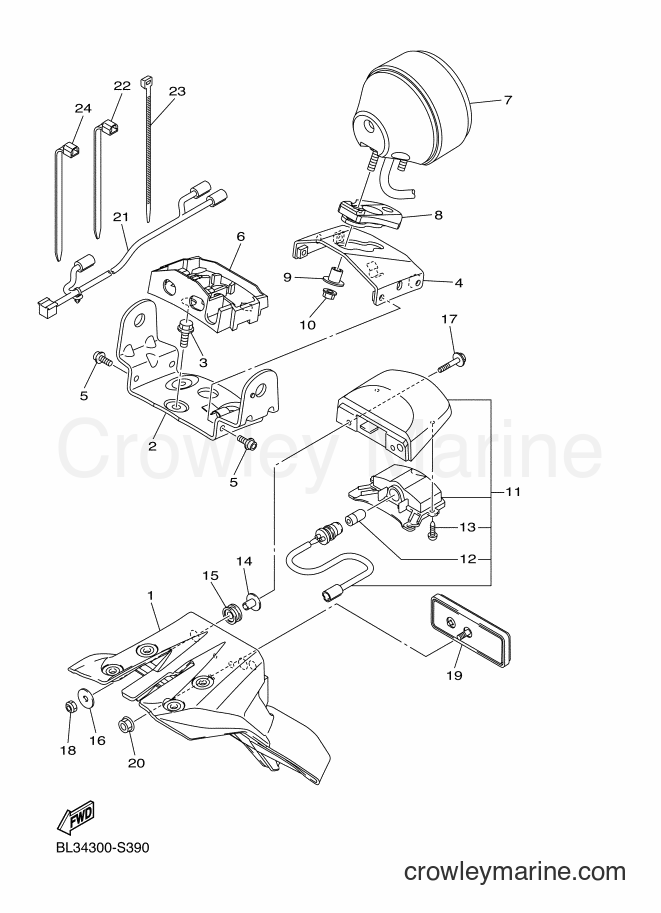

2017 Cruiser XVS950XR-A - XVS950XR-A (BL34) [050] TAILLIGHT diagram

1
Yamaha Motors
LICENSE BRACKETBL3-21685-00-00
Required: 1
BRACKET, LICENSE
$34.84
You save $6.15

2
Yamaha Motors
FLASHER STAY 1BL3-83368-00-00
Required: 1
STAY, FLASHER 1
$59.49
You save $10.50

3
Yamaha Motors
Flange Bolt95817-06014-00
Required: 3
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42

4
Yamaha Motors
FLASHER STAYBL3-83369-00-00
Required: 1
STAY, FLASHER 2
$34.84
You save $6.15
$0.47
You save $0.08

6
Yamaha Motors
TAIL DAMPERBL3-84736-00-00
Required: 1
DAMPER, TAIL 1
$25.49
You save $4.50
$162.34
You save $28.65

8
Yamaha Motors
TAIL DAMPER1TP-84736-00-00
Required: 1
DAMPER, TAIL 1
$7.22
You save $1.27
$8.07
You save $1.42
$7.22
You save $1.27

11
Yamaha Motors
License Light Unit Assembly32C-84745-01-00
Required: 1
LICENCE LIGHT UNIT ASSY
$72.24
You save $12.75

12
Yamaha Motors
BULB (12V-5W)4SV-84347-00-00
Required: 1
. BULB (12V-5W)
$8.07
You save $1.42

13
Yamaha Motors
Truss Screw97707-40612-00
Required: 2
. SCREW, TAPPING
$5.94
You save $1.05
$3.95
You save $0.70
$7.22
You save $1.27

16
Yamaha Motors
Plate Washer90201-061A5-00
Required: 2
WASHER, PLATE
Supersedes: 90201-05036-00
$7.22
You save $1.27

17
Yamaha Motors
Screw With Washer90159-05035-00
Required: 2
SCREW, WITH WASHER
$8.07
You save $1.42

18
Yamaha Motors
95617-05100-0095612-05100-00
Required: 2
NUT, U
Supersedes: 95602-05100-00
$1.87
You save $0.33

19
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
$16.14
You save $2.85
$0.81
You save $0.14

21
Yamaha Motors
TAIL LIGHT CORDBL3-84717-00-00
Required: 1
CORD, TAILLIGHT
$39.94
You save $7.05
$3.75
You save $0.66
$9.34
You save $1.65
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
