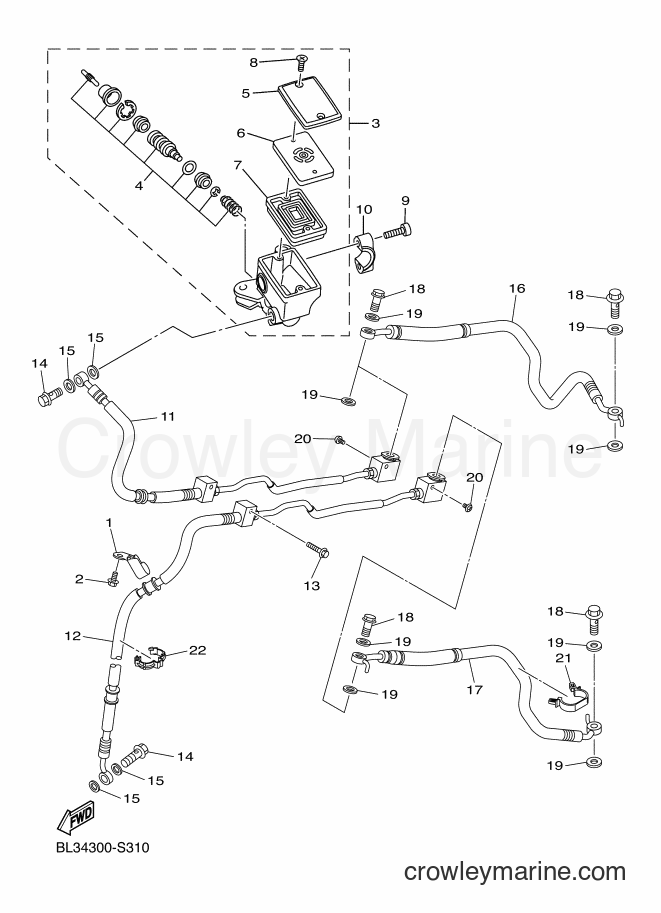

2017 Cruiser XVS950XR-A - XVS950XR-A (BL34) [050] FRONT MASTER CYLINDER diagram

1
Yamaha Motors
BRAKE HOSE HOLER1TP-25886-00-00
Required: 1
HOLDER, BRAKE HOSE
$14.02
You save $2.47
$3.02
You save $0.53
3
Required: 1
MASTER CYLINDER SUB ASSY 2
Price unavailable

4
Yamaha Motors
MASTER CYLINDER KIT4B5-25807-00-00
Required: 1
. CYLINDER KIT, MASTER
$52.69
You save $9.30

5
Yamaha Motors
Reservoir Cap5VS-25852-00-00
Required: 1
. CAP, RESERVOIR
$26.34
You save $4.65

6
Yamaha Motors
DIAPHRAGM BUSH5VS-25855-00-00
Required: 1
. BUSH,DIAPHRAGM
$15.29
You save $2.70

7
Yamaha Motors
Diaphragm Gasket20S-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$27.19
You save $4.80
$3.78
You save $0.67
$4.21
You save $0.74
10
Yamaha Motors
Master Cylinder Bracket5VS-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$33.99
You save $6.00
11
Required: 1
HOSE, BRAKE
Price unavailable
12
Required: 1
HOSE, BRAKE
Price unavailable
$3.02
You save $0.53
$8.92
You save $1.57
$8.07
You save $1.42
16
Required: 1
PIPE, BRAKE
Price unavailable
17
Required: 1
HOSE, BRAKE 1
Price unavailable
$8.92
You save $1.57
$8.07
You save $1.42

20
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 2
BOLT, BUTTON HEAD
$4.67
You save $0.82
$7.22
You save $1.27
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
