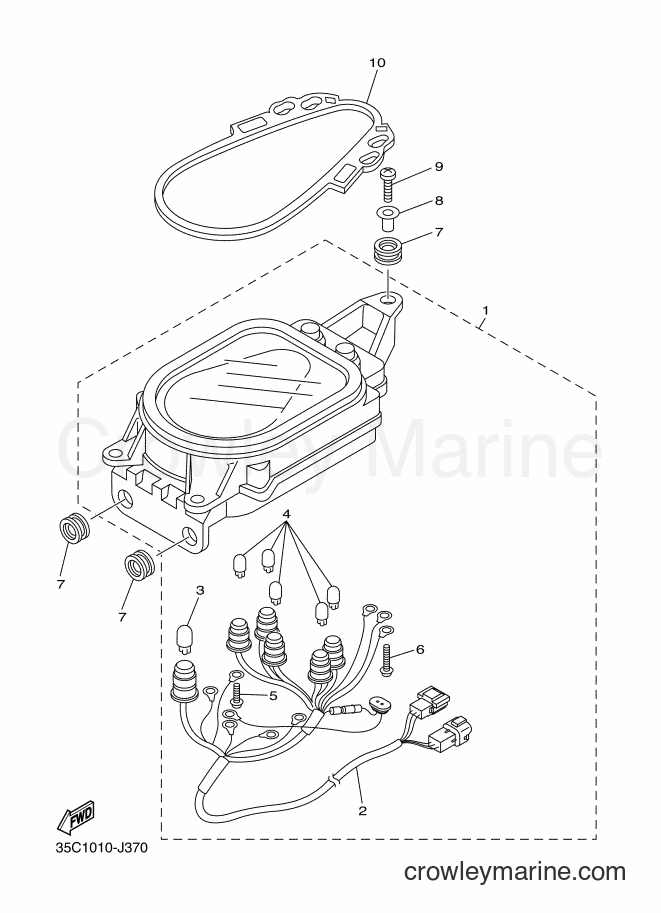

2017 Cruiser XVS400C - XVS400C (35CD) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVS400C (35CD) [010] - METER
Change View:
1
Required: 1
METER ASSY
Price unavailable
2
Required: 1
. SOCKET CORD ASSY
Price unavailable
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 1
. BULB (12V-1.7W T10)
Supersedes: 1YT-83517-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Obsolete Yamaha Part
4
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 5
. BULB (12V-1.7W T6.5)
Supersedes: 2GV-83517-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 5
. SCREW, SPECIAL
Price unavailable
Screw with Washer
6
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
DAMPER 2
7
Yamaha Motors
DAMPER 24WM-83513-00-00
Required: 3
DAMPER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Collar (82M)
8
Yamaha Motors
Collar (82M)90387-050T5-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
10
Required: 1
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
