All diagrams for this model

2017 Cruiser XVS400C - XVS400C (35CB) [010] GRAPHIC & EMBLEM 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

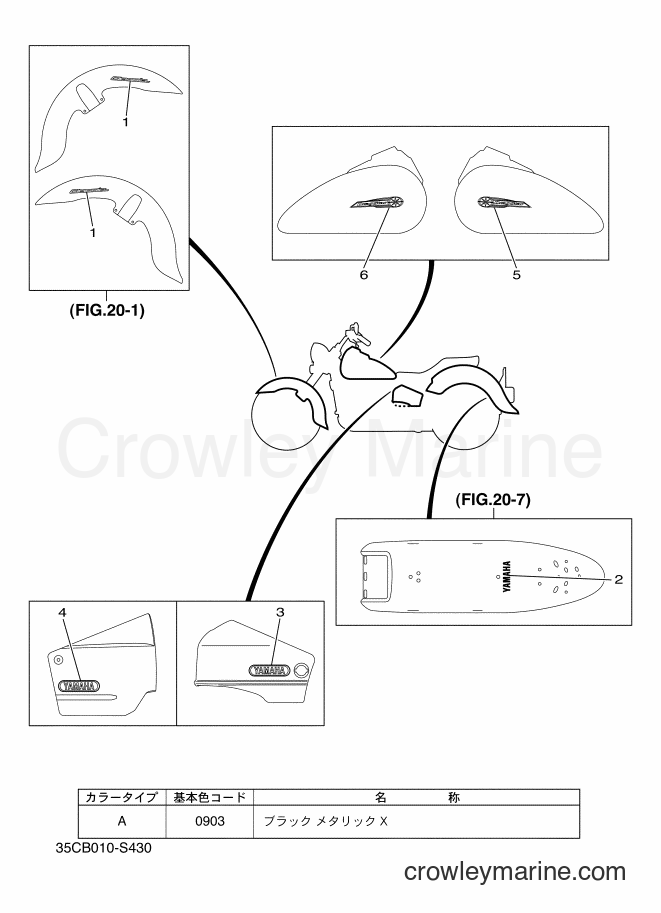

Yamaha Motors XVS400C (35CB) [010] - GRAPHIC & EMBLEM 1
Change View:
EMBLEM
1
Yamaha Motors
EMBLEM5BN-21565-01-00
Required: 2
. EMBLEM 2
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
YAMAHA EMBLEM
2
Yamaha Motors
YAMAHA EMBLEM99247-00080-00
Required: 1
. EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
EMBLEM 1 (YAMAHA EF2000IS)
3
Yamaha Motors
EMBLEM 1 (YAMAHA EF2000IS)3LS-21781-00-00
Required: 1
EMBLEM 1
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
EMBLEM 1 (YAMAHA EF2000IS)
4
Yamaha Motors
EMBLEM 1 (YAMAHA EF2000IS)3LS-21781-00-00
Required: 1
EMBLEM 1
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
5
Required: 1
EMBLEM 1
Price unavailable
6
Required: 1
EMBLEM 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
