2015 Cruiser XVS950CU - XVS950CU (B336) [010] GRAPHIC & EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

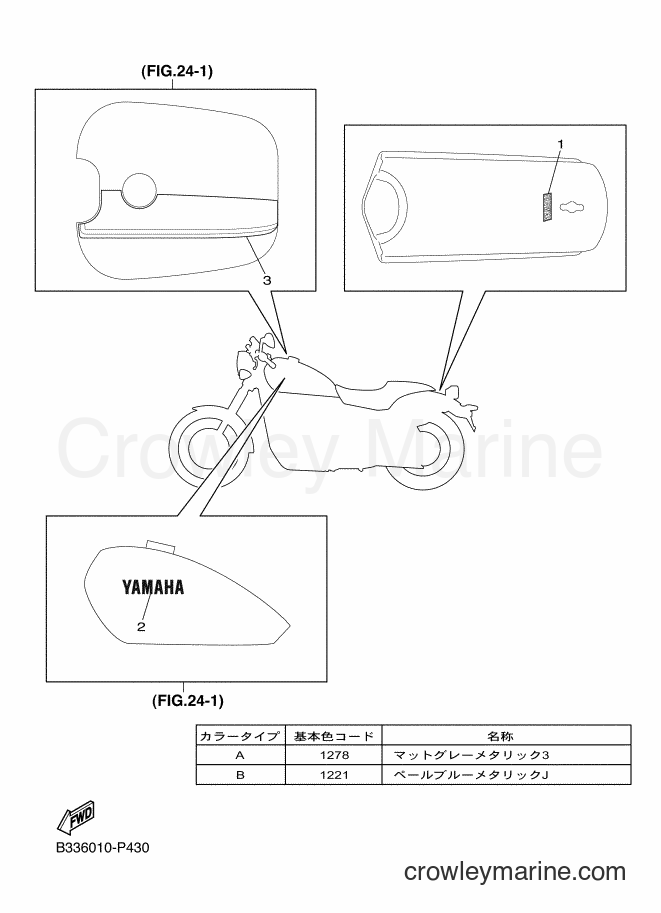

Yamaha Motors XVS950CU (B336) [010] - GRAPHIC & EMBLEM
Change View:
YAMAHA EMBLEM
1
Yamaha Motors
YAMAHA EMBLEM3WF-2153E-71-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 1D6-2153E-00-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Emblem
2
Yamaha Motors
Emblem99244-00140-00
Required: 2
. EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
FUEL TANK GRAPHIC 1
3
Yamaha Motors
FUEL TANK GRAPHIC 12DX-24244-00-00
Required: 1
. GRAPHIC, FUEL TANK 1
Cross Ship
Leaves in 2-5 days
$71.99
$61.19
You save $10.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
