2015 Cruiser XVS250 - XVS250 (19D7) [010] GRAPHIC & EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

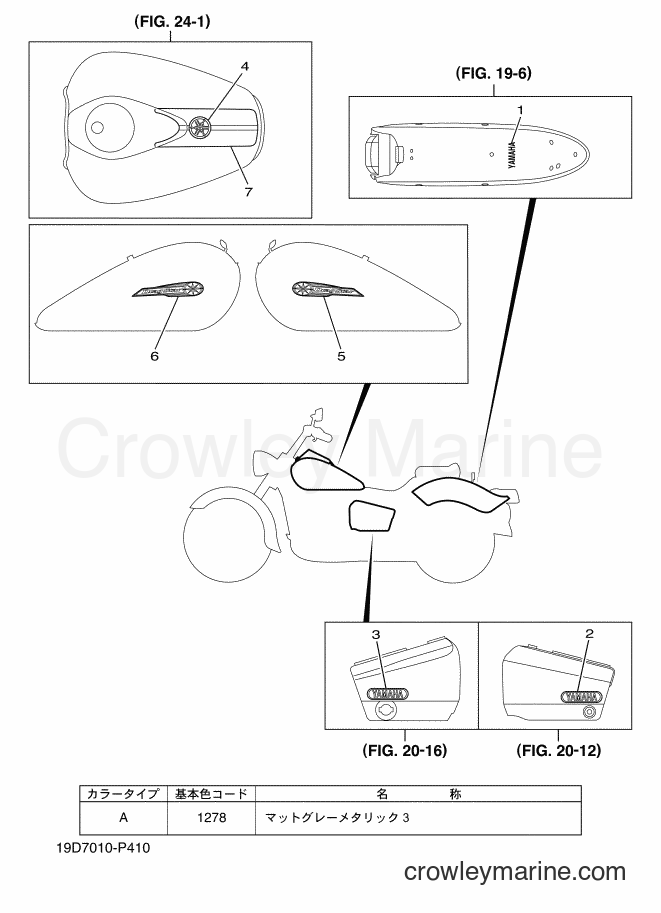

Yamaha Motors XVS250 (19D7) [010] - GRAPHIC & EMBLEM
Change View:
YAMAHA EMBLEM
1
Yamaha Motors
YAMAHA EMBLEM99244-00080-00
Required: 1
. EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
2
Required: 1
. EMBLEM 1
Price unavailable
3
Required: 1
. EMBLEM 1
Price unavailable
Emblem / Rear APPLIQUE
4
Yamaha Motors
Emblem / Rear APPLIQUE4TR-2413B-00-00
Required: 1
EMBLEM
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
5
Required: 1
EMBLEM
Price unavailable
6
Required: 1
EMBLEM
Price unavailable
7
Required: 1
. GRAPHIC, FUEL TANK 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
