All diagrams for this model

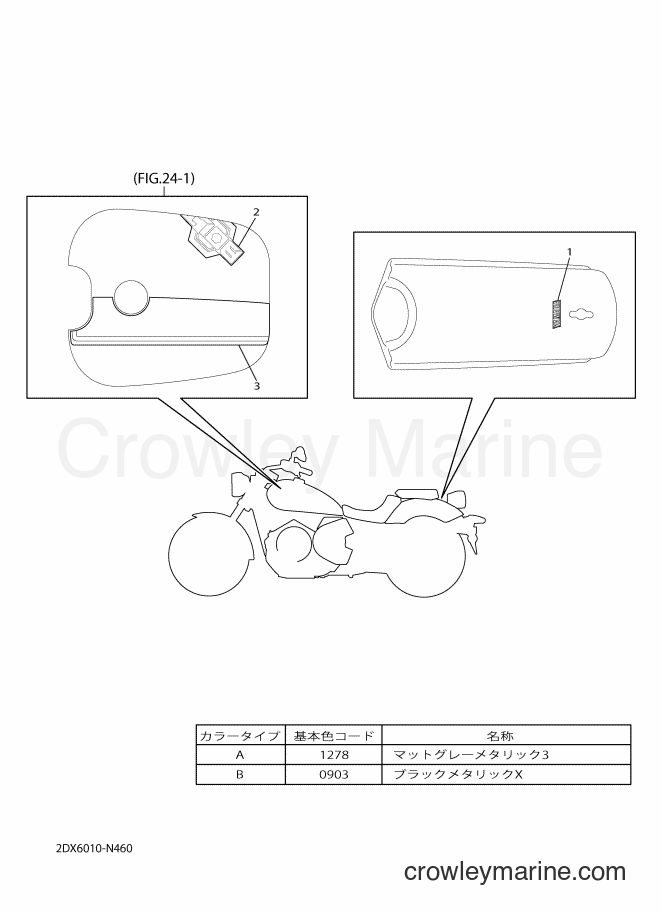

2014 Cruiser XVS950CU - XVS950CU (2DX8) [010] GRAPHIC & EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVS950CU (2DX8) [010] - GRAPHIC & EMBLEM
Change View:
1
Required: 1
EMBLEM, YAMAHA
Price unavailable
FUEL TANK GRAPHIC 1
2
Yamaha Motors
FUEL TANK GRAPHIC 11TP-24244-10-00
Required: 1
. GRAPHIC, FUEL TANK 1
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
FUEL TANK GRAPHIC 1
3
Yamaha Motors
FUEL TANK GRAPHIC 12DX-24244-00-00
Required: 1
. GRAPHIC, FUEL TANK 1
Cross Ship
Leaves in 2-5 days
$71.99
$61.19
You save $10.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
