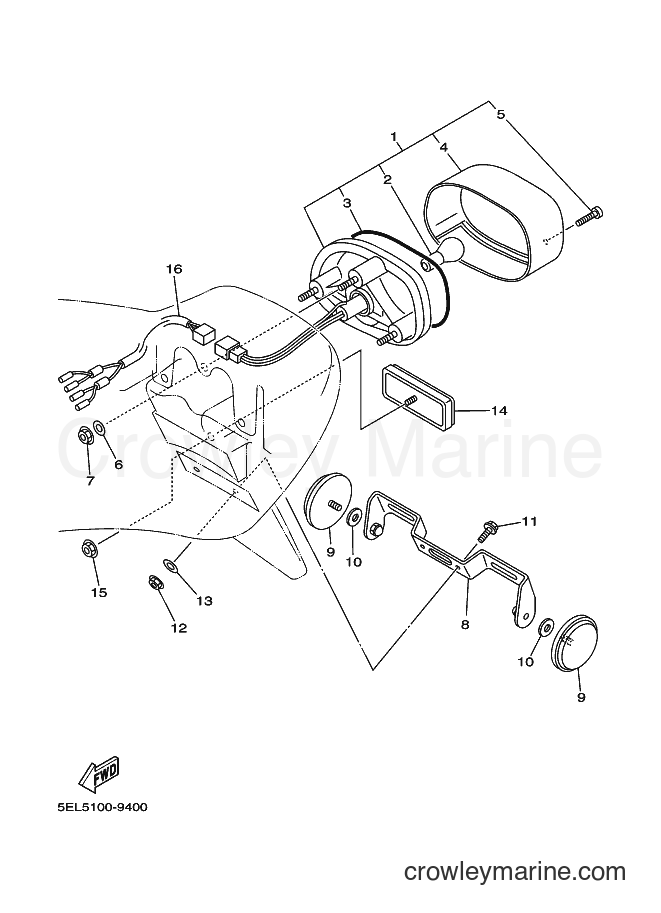

2009 Cruiser XVS1100 - XVS1100 (3B8K) [010] TAILLIGHT diagram
$140.24
You save $24.75

2
Yamaha Motors
BULB 12V32/3CP256-84714-61-00
Required: 1
. BULB (12V-21/5W)
Supersedes: 256-84714-60-00
$11.04
You save $1.95

3
Yamaha Motors
TAIL LENS GASKET4TX-84723-00-00
Required: 1
. GASKET, TAIL LENS
Supersedes: 4TR-84723-00-00
$4.67
You save $0.82

4
Yamaha Motors
Taillight Lens4TR-84733-00-00
Required: 1
. LENS, TAILLIGHT
$21.24
You save $3.75

5
Yamaha Motors
Pan Head Tap Screw97707-40520-00
Required: 2
. SCREW, TAPPING
Supersedes: 97706-40620-00
$8.92
You save $1.57

6
Yamaha Motors
Plate Washer90201-06380-00
Required: 3
WASHER, PLATE
$0.55
You save $0.10
7
Yamaha Motors
NUT95617-06100-00
Required: 3
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44

8
Yamaha Motors
LICENSE BRACKET5EL-84751-00-00
Required: 1
BRACKET, LICENSE
$31.44
You save $5.55

9
Yamaha Motors
Rear Reflector449-85131-02-00
Required: 2
REFLECTOR, REAR 1
$28.89
You save $5.10

10
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
$0.81
You save $0.14
12
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44

13
Yamaha Motors
Plain Washer90201-06095-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06063-00
$8.07
You save $1.42

14
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
$16.14
You save $2.85
$8.07
You save $1.42

16
Yamaha Motors
TAIL LIGHT CORD5KP-84717-00-00
Required: 1
CORD, TAILLIGHT
$32.29
You save $5.70
