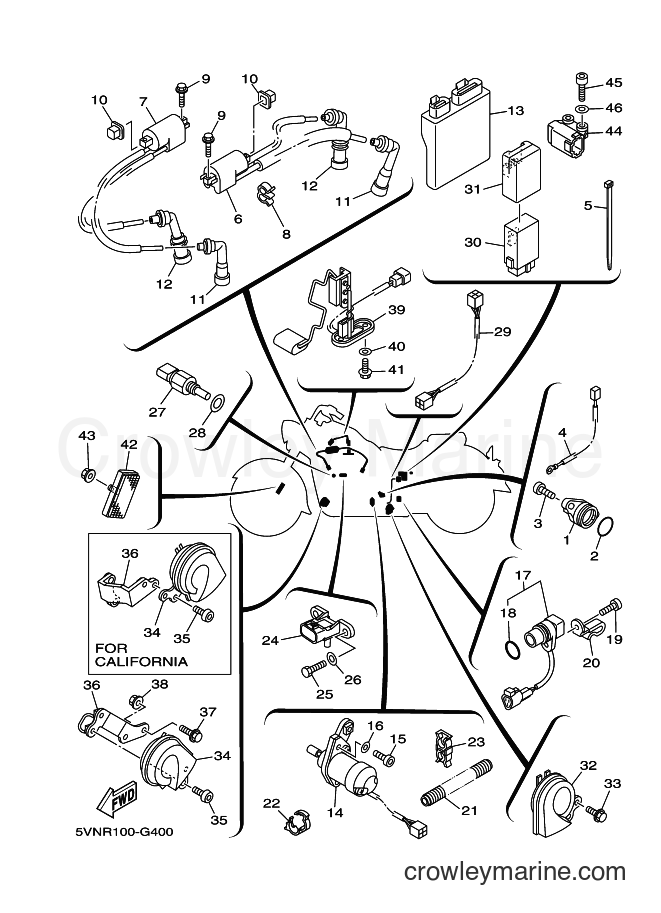

2008 Cruiser XV1700A - XV1700A (35S3) [010] ELECTRICAL 1 diagram
1
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1AE-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$28.89
You save $5.10
$8.07
You save $1.42

3
Yamaha Motors
Screw (M8 X 40)90149-06041-00
Required: 2
SCREW
Supersedes: 90149-06139-00
$1.66
You save $0.29

4
Yamaha Motors
Sub Lead Wire5VN-82509-00-00
Required: 1
WIRE, SUB LEAD
$8.92
You save $1.57
$8.07
You save $1.42

6
Yamaha Motors
Ignition Coil Assembly5VN-82310-20-00
Required: 1
IGNITION COIL ASSY
$129.19
You save $22.80
7
Yamaha Motors
Ignition Coil Assembly4WM-82310-10-00
Required: 1
IGNITION COIL ASSY
$147.04
You save $25.95
$7.22
You save $1.27
9
Yamaha Motors
Flange Bolt95817-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52

10
Yamaha Motors
IGNITION COIL DAMPER4U8-82317-00-00
Required: 2
DAMPER, IGNITION COIL
$10.19
You save $1.80

11
Yamaha Motors
Plug Cap Assembly4VW-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 4TR-82370-00-00
$64.59
You save $11.40
$67.99
You save $12.00

13
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY5VN-8591A-00-00
Required: 1
ENGINE CONTROL UNIT ASSY
$817.69
You save $144.30
$286.44
You save $50.55

15
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06114-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06061-00
$9.77
You save $1.72

16
Yamaha Motors
Plain Washer90202-06002-00
Required: 2
WASHER, PLATE
$3.06
You save $0.54

17
Yamaha Motors
SENSOR, SPEED5YU-83755-02-00
Required: 1
SENSOR, SPEED
Supersedes: 5YU-83755-01-00
$115.59
You save $20.40
In stock
Only 1 remaining
$6.37
You save $1.12
$3.82
You save $0.68

20
Yamaha Motors
Clamp90465-06332-00
Required: 1
CLAMP
Supersedes: 90465-08127-00
$3.06
You save $0.54
$5.09
You save $0.90
$6.46
You save $1.14
$4.04
You save $0.71

24
Yamaha Motors
Pressure Sensor5PS-82380-00-00
Required: 1
SENSOR, PRESSURE
$266.04
You save $46.95

25
Yamaha Motors
BOLT97017-05012-00
Required: 2
BOLT
Supersedes: 97007-05012-00
$8.07
You save $1.42

26
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
$171.69
You save $30.30

28
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
$2.93
You save $0.52

29
Yamaha Motors
Band5VN-82583-00-00
Required: 1
WIRE, SUB LEAD
$42.49
You save $7.50

30
Yamaha Motors
FLASHER RELAY ASSY5VN-83350-11-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 5VN-83350-10-00
$75.64
You save $13.35
$16.14
You save $2.85
$86.69
You save $15.30
$1.19
You save $0.21
$58.64
You save $10.35

35
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
$2.25
You save $0.40
$30.59
You save $5.40
$7.22
You save $1.27
$0.85
You save $0.15

39
Yamaha Motors
SENDER UNIT ASSY, FUEL METER5VN-85752-21-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Supersedes: 5VN-85752-10-00
$114.74
You save $20.25

40
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-05193-00
In stock
Only 4 remaining
$1.44
You save $0.26

41
Yamaha Motors
95817-06016-0090105-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95817-06016-00
$1.49
You save $0.26
$26.34
You save $4.65

43
Yamaha Motors
U Flange Nut95607-05200-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-05007-00
$8.92
You save $1.57
44
Yamaha Motors
SENSOR, LEAN ANGLE5VU-82576-02-00
Required: 1
LEAN ANGLE SENSOR
Supersedes: 5VU-82576-01-00
$103.69
You save $18.30
$1.66
You save $0.29

46
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
$3.40
You save $0.60
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors XV1700A (35S3) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/jjTOjufj.png)
