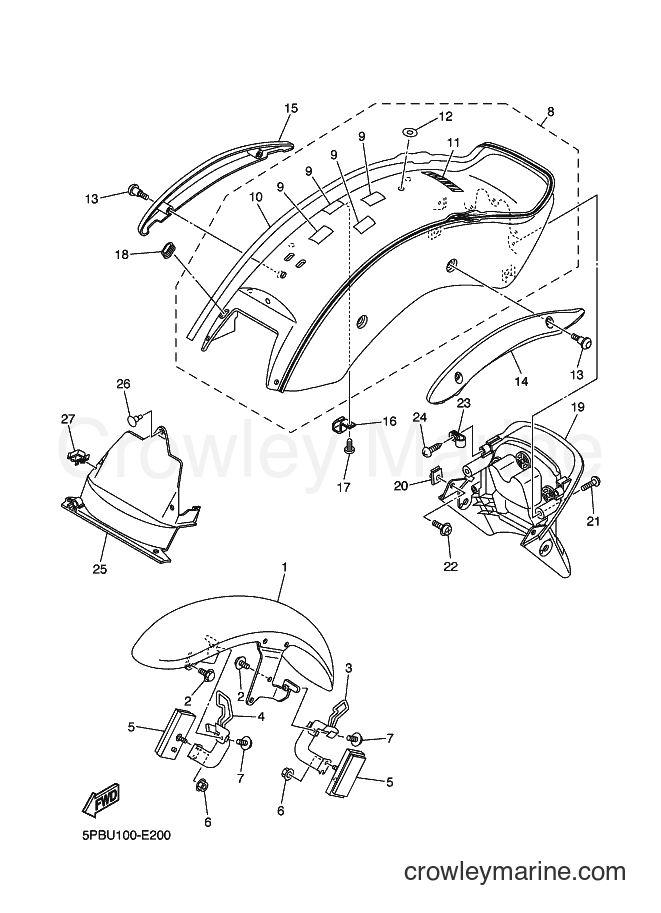

2007 Cruiser XVS1100 - XVS1100 (5P92) [010] FENDER diagram

1
Yamaha Motors
Front Fender Comp5EL-21510-10-P0
Required: 1
FRONT FENDER COMP.
$195.49
You save $34.50
$8.92
You save $1.57

3
Yamaha Motors
WIRE HOLDER5EL-21597-10-00
Required: 1
HOLDER,WIRE 1
$30.59
You save $5.40

4
Yamaha Motors
Wire Holder5EL-21598-10-00
Required: 1
HOLDER, WIRE 2
$26.34
You save $4.65
$26.34
You save $4.65
$8.07
You save $1.42

7
Yamaha Motors
Flange Bolt95817-06014-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42

8
Yamaha Motors
Rear Fender Component5EL-Y2161-1G-P4
Required: 1
REAR FENDER COMP.
$347.64
You save $61.35
$16.14
You save $2.85

10
Yamaha Motors
REAR FENDER GRAPHIC5PB-21675-80-00
Required: 1
. GRAPHIC, REAR FENDER
$115.59
You save $20.40

11
Yamaha Motors
YAMAHA EMBLEM3WF-2153E-71-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 1D6-2153E-00-00
$4.67
You save $0.82
$7.22
You save $1.27

13
Yamaha Motors
BOLT90111-08001-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$8.07
You save $1.42
$113.89
You save $20.10
$113.89
You save $20.10
$3.15
You save $0.56

17
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
$4.67
You save $0.82
$86.69
You save $15.30

20
Yamaha Motors
Spring Nut90183-051A0-00
Required: 4
NUT, SPRING
Supersedes: 90183-05024-00
$3.49
You save $0.62
21
Yamaha Motors
Binding Screw90154-05004-00
Required: 2
SCREW, BINDING
$4.67
You save $0.82

22
Yamaha Motors
Screw With Washer90159-05056-00
Required: 2
SCREW, WITH WASHER
Supersedes: 90159-05083-00
$1.19
You save $0.21
$25.49
You save $4.50

24
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
$41.64
You save $7.35
$8.07
You save $1.42
$11.47
You save $2.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
