2007 Cruiser XVS1100 - XVS1100 (3B8B) [010] ELECTRICAL 1 diagram

1
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 4KM-82540-00-00
$35.69
You save $6.30
$5.09
You save $0.90

3
Yamaha Motors
IGNITER UNIT ASSEMBLY5KS-82305-30-00
Required: 1
IGNITOR UNIT ASSY
$1005.54
You save $177.45

4
Yamaha Motors
Truss Screw97707-60016-00
Required: 2
SCREW, TAPPING
$1.57
You save $0.28
$2.00
You save $0.35

6
Yamaha Motors
Ignition Coil Assembly5EL-82310-00-00
Required: 1
IGNITION COIL ASSY
$152.14
You save $26.85

7
Yamaha Motors
Bolt (3JK)97027-05020-00
Required: 2
BOLT
Supersedes: 97007-05020-00
$3.02
You save $0.53

8
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15

9
Yamaha Motors
Ignition Coil Assembly5EL-82320-00-00
Required: 1
IGNITION COIL ASSY
$158.94
You save $28.05

10
Yamaha Motors
Bolt (3JK)97027-05020-00
Required: 2
BOLT
Supersedes: 97007-05020-00
$3.02
You save $0.53

11
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
$58.64
You save $10.35
$134.29
You save $23.70
$8.07
You save $1.42

15
Yamaha Motors
Sub Lead Wire4FL-82541-00-00
Required: 1
WIRE, SUB LEAD
Supersedes: 5EL-82509-00-00
$7.22
You save $1.27

16
Yamaha Motors
Oil Level Gauge Assembly5EL-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 5EL-85720-01-00
$129.19
You save $22.80
$1.06
You save $0.19
18
Yamaha Motors
Flasher Relay Assembly5EL-83350-01-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 5EL-83350-00-00
$67.99
You save $12.00
$53.54
You save $9.45
$3.23
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

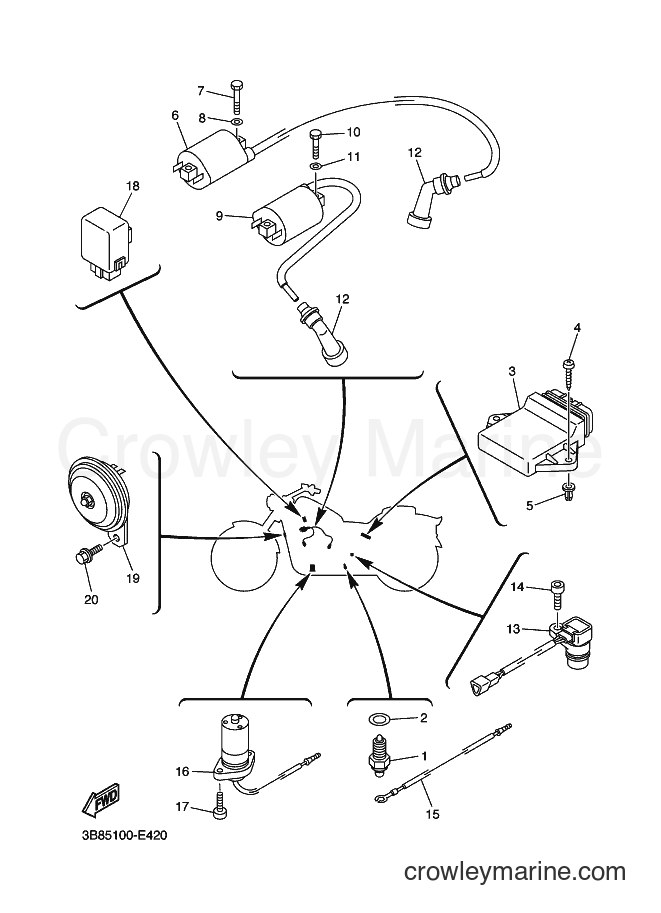

![Yamaha Motors XVS1100 (3B8B) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/B4h8LJGe.png)
