2007 Cruiser XV1900A - XV1900A (4D56) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

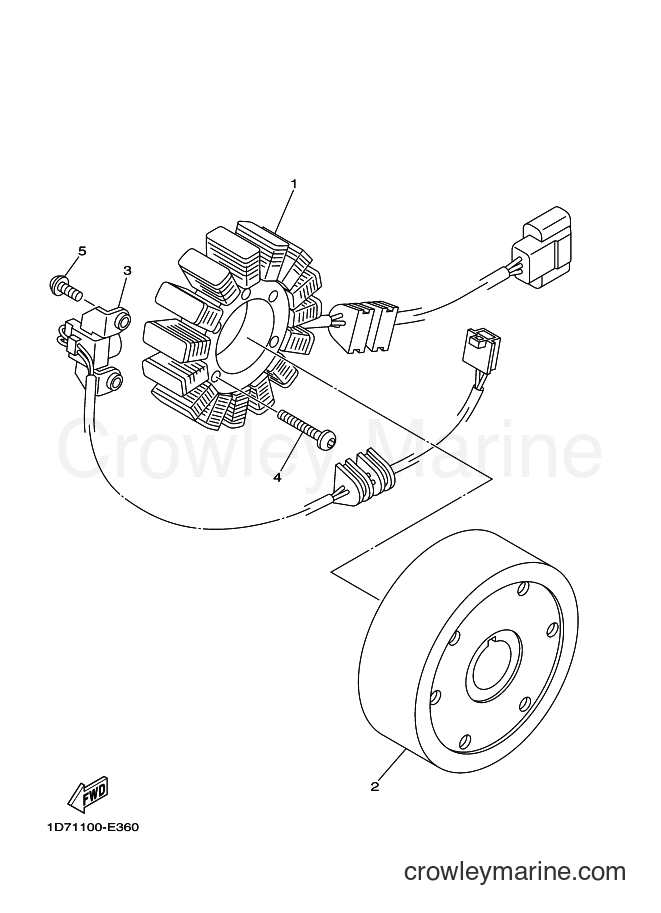

Yamaha Motors XV1900A (4D56) [010] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly1D7-81410-01-00
Required: 1
STATOR ASSY
Supersedes: 1D7-81410-00-00
Cross Ship
Leaves in 2-5 days
$611.99
$520.19
You save $91.80
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly1D7-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$482.99
$410.54
You save $72.45
More details
PICK-UP ASSY
3
Yamaha Motors
PICK-UP ASSY5C7-81670-02-00
Required: 1
PICK-UP ASSY
Supersedes: 1D7-81670-00-00
Cross Ship
Leaves in 2-5 days
$127.99
$108.79
You save $19.20
More details
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)90149-06122-00
Required: 3
SCREW
Supersedes: 90149-06093-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Screw (M8 X 40)
5
Yamaha Motors
Screw (M8 X 40)90149-06068-00
Required: 2
SCREW
Supersedes: 90149-06069-00
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
