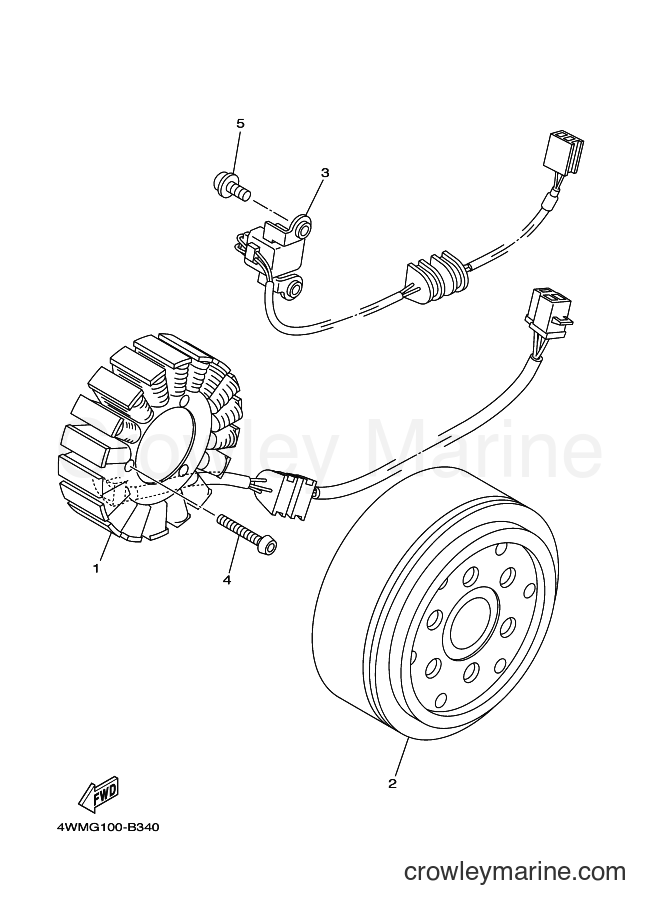

2004 Cruiser XV1700AM - XV1700AM (5VR3) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XV1700AM (5VR3) [010] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly4WM-81410-01-00
Required: 1
STATOR ASSY
Supersedes: 4WM-81410-00-00
Cross Ship
Leaves in 2-5 days
$642.99
$546.54
You save $96.45
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly5VN-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$352.99
$300.04
You save $52.95
More details
Pick-Up Assembly
3
Yamaha Motors
Pick-Up Assembly5VN-81670-00-00
Required: 1
PICK-UP ASSY
Cross Ship
Leaves in 2-5 days
$115.99
$98.59
You save $17.40
More details
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)90149-06013-00
Required: 3
SCREW
Supersedes: 90149-06019-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
PAN HEAD SCREW WITH WASHER
5
Yamaha Motors
PAN HEAD SCREW WITH WASHER97607-06216-00
Required: 2
SCREW, WITH WASHER
Supersedes: 90159-06004-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
