All diagrams for this model

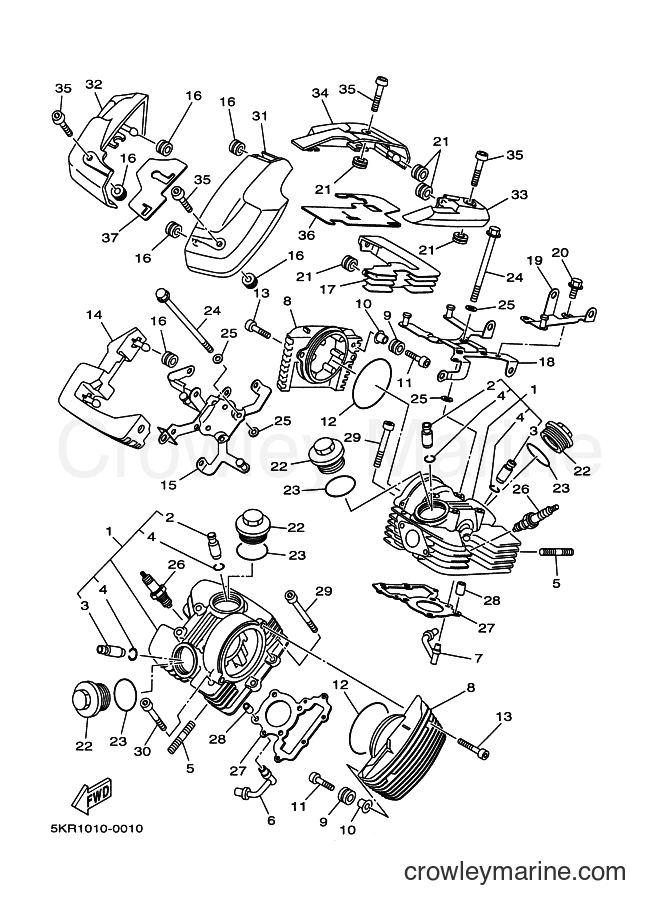

2001 Cruiser XVS250 - XVS250 (5KR2) [050] CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVS250 (5KR2) [050] - CYLINDER HEAD
Change View:
1
Required: 2
CYLINDER HEAD ASSY
Price unavailable
INTAKE VALVE 1 GUIDE (O/S)
2
Yamaha Motors
INTAKE VALVE 1 GUIDE (O/S)2UJ-11133-10-00
Required: 1
. GUIDE, VALVE 1
Cross Ship
Leaves in 2-5 days
$56.99
$48.44
You save $8.55
More details
Exhaust Valve Guide O/S
3
Yamaha Motors
Exhaust Valve Guide O/S22F-11134-10-00
Required: 1
. GUIDE, VALVE 2
Cross Ship
Leaves in 2-5 days
$96.99
$82.44
You save $14.55
More details
Circlip (Outer)
4
Yamaha Motors
Circlip (Outer)93440-10109-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Stud Bolt
5
Yamaha Motors
Stud Bolt90116-06541-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 1
PIPE 1
Price unavailable
7
Required: 1
PIPE 2
Price unavailable
8
Required: 2
COVER, CYLINDER HEAD SIDE 3
Price unavailable
Grommet
9
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COLLAR
10
Yamaha Motors
COLLAR90387-066Y6-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Button Bolt
11
Yamaha Motors
Button Bolt92017-06020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
O-Ring
12
Yamaha Motors
O-Ring93210-78544-00
Required: 2
O-RING
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
14
Required: 1
COVER, CYLINDER HEAD SIDE 2
Price unavailable
15
Required: 1
BRACKET, CYLINDER HEAD COVER
Price unavailable
GROMMET, WATER TUBE (UPPER)
16
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10003-00
Required: 8
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
18
Required: 1
BRACKET, CYLINDER HEAD COVER 2
Price unavailable
19
Required: 1
PLATE 2
Price unavailable
Flange Bolt (4MY)
20
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
GROMMET, WATER TUBE (UPPER)
21
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10003-00
Required: 8
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Cylinder Head Cover
22
Yamaha Motors
Cylinder Head Cover22F-11186-10-00
Required: 4
COVER, CYLINDER HEAD SIDE 2
Supersedes: 22F-11186-00-00
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
24
Required: 8
BOLT, FLANGE
Price unavailable
Plate Washer
25
Yamaha Motors
Plate Washer90201-080L7-00
Required: 16
WASHER, PLATE
Supersedes: 90201-08609-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Socket Bolt
29
Yamaha Motors
Socket Bolt91317-06110-00
Required: 4
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Bolt (4MY)
30
Yamaha Motors
Bolt (4MY)91317-06040-00
Required: 4
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
31
Required: 1
COVER 1
Price unavailable
32
Required: 1
COVER 2
Price unavailable
33
Required: 1
COVER 3
Price unavailable
34
Required: 1
COVER 4
Price unavailable
SPECIAL SHAPE SCREW
35
Yamaha Motors
SPECIAL SHAPE SCREW90149-06298-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
36
Required: 1
PLATE
Price unavailable
37
Required: 1
COVER, CYLINDER HEAD 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
