2001 Cruiser XVS250 - XVS250 (5KR2) [120] OIL CLEANER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

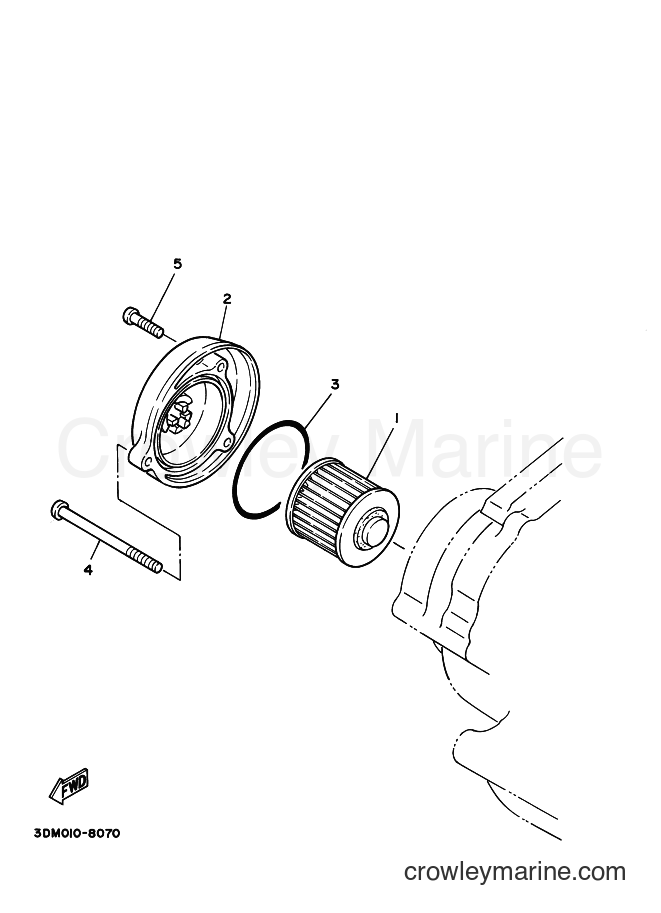

Yamaha Motors XVS250 (5KR2) [120] - OIL CLEANER
Change View:
Oil Element Assembly Cl
1
Yamaha Motors
Oil Element Assembly Cl5JX-13440-00-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
2
Required: 1
COVER, OIL ELEMENT
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring93210-64297-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
Socket head bolt
4
Yamaha Motors
Socket head bolt91314-06080-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Socket Bolt
5
Yamaha Motors
Socket Bolt91314-06030-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
