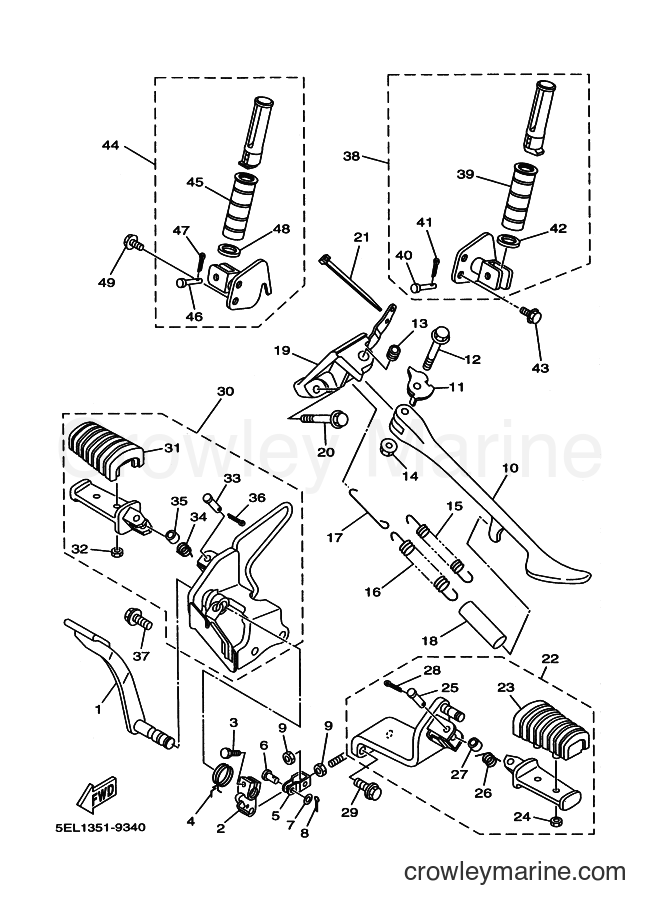

2001 Cruiser XVS1100 - XVS1100 (5PB2) [100] STAND & FOOTREST diagram
$79.89
You save $14.10
$56.09
You save $9.90

3
Yamaha Motors
BOLT (3DM)97024-06020-00
Required: 1
BOLT
Supersedes: 97004-06020-00
$8.07
You save $1.42

4
Yamaha Motors
Return Spring5EL-27216-00-00
Required: 1
SPRING, RETURN
$6.37
You save $1.12

5
Yamaha Motors
Joint4BP-27222-02-00
Required: 1
JOINT
Supersedes: 4BP-27222-00-00
$28.04
You save $4.95
$7.22
You save $1.27

7
Yamaha Motors
Plate Washer90201-08083-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
8
Required: 1
PIN, COTTER
Price unavailable
$8.92
You save $1.57
$173.39
You save $30.60
$17.84
You save $3.15
$11.47
You save $2.02
$20.39
You save $3.60
In stock
5+ in stock
$3.53
You save $0.62

15
Yamaha Motors
Tension Spring90506-23490-00
Required: 1
SPRING, TENSION
$10.62
You save $1.87

16
Yamaha Motors
Tension Spring90506-29507-00
Required: 1
SPRING, TENSION
$13.17
You save $2.32

17
Yamaha Motors
Side Stand Link5EL-27315-00-00
Required: 1
LINK, SIDE STAND
$7.22
You save $1.27
$7.22
You save $1.27

19
Yamaha Motors
SIDE STAND BRACKET5EL-27321-00-00
Required: 1
BRACKET, SIDE STAND
$257.54
You save $45.45
$5.94
You save $1.05
$4.67
You save $0.82

22
Yamaha Motors
Front Footrest Assembly5EL-27410-00-00
Required: 1
FRONT FOOTREST ASSY (LEFT)
$111.34
You save $19.65

23
Yamaha Motors
FOOTREST COVER4VR-27413-00-00
Required: 1
. COVER, FOOTREST
$38.24
You save $6.75
24
Yamaha Motors
NUT95617-06100-00
Required: 2
. NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44

25
Yamaha Motors
CLEVIS PIN91701-08038-00
Required: 1
. PIN, CLEVIS
Supersedes: 90240-08084-00
$3.78
You save $0.67

26
Yamaha Motors
Torsion Spring90508-18696-00
Required: 1
. SPRING, TORSION
$8.07
You save $1.42
$9.77
You save $1.72
$0.21
You save $0.04
$9.77
You save $1.72

30
Yamaha Motors
FRONT FOOTREST ASSEMBLY5EL-27420-00-00
Required: 1
FRONT FOOTREST ASSY (RIGHT)
$110.49
You save $19.50

31
Yamaha Motors
FOOTREST COVER4VR-27413-00-00
Required: 1
. COVER, FOOTREST
$38.24
You save $6.75
32
Yamaha Motors
NUT95617-06100-00
Required: 2
. NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44

33
Yamaha Motors
CLEVIS PIN91701-08038-00
Required: 1
. PIN, CLEVIS
Supersedes: 90240-08084-00
$3.78
You save $0.67

34
Yamaha Motors
Torsion Spring90508-18696-00
Required: 1
. SPRING, TORSION
$8.07
You save $1.42
$9.77
You save $1.72
$0.21
You save $0.04
$9.77
You save $1.72

38
Yamaha Motors
REAR FOOTREST ASSEMBLY5EL-27430-00-00
Required: 1
REAR FOOTREST ASSY 1
$121.54
You save $21.45

39
Yamaha Motors
REAR FOOTREST COVER4WM-27433-00-00
Required: 1
. COVER, REAR FOOTREST
$16.99
You save $3.00

40
Yamaha Motors
CLEVIS PIN91701-06032-00
Required: 1
. PIN, CLEVIS
$8.92
You save $1.57
41
Required: 1
. PIN, COTTER
Price unavailable

42
Yamaha Motors
Plate Washer90201-210U0-00
Required: 1
. WASHER, PLATE
$9.77
You save $1.72
$3.23
You save $0.57

44
Yamaha Motors
REAR FOOTREST ASSEMBLY5EL-27440-00-00
Required: 1
REAR FOOTREST ASSY 2
$117.29
You save $20.70

45
Yamaha Motors
REAR FOOTREST COVER4WM-27433-00-00
Required: 1
. COVER, REAR FOOTREST
$16.99
You save $3.00

46
Yamaha Motors
CLEVIS PIN91701-06032-00
Required: 1
. PIN, CLEVIS
$8.92
You save $1.57
47
Required: 1
. PIN, COTTER
Price unavailable

48
Yamaha Motors
Plate Washer90201-210U0-00
Required: 1
. WASHER, PLATE
$9.77
You save $1.72
$3.23
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
