2000 Cruiser XVZ13TF - XVZ13TF (5JC2) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

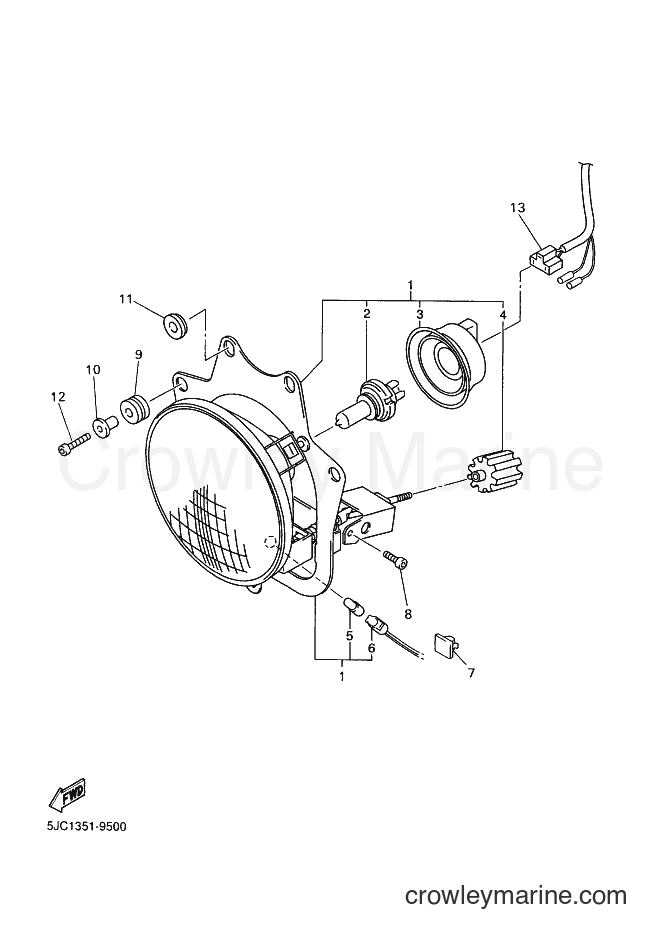

Yamaha Motors XVZ13TF (5JC2) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
Socket Cover
3
Yamaha Motors
Socket Cover3SX-84397-00-00
Required: 1
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
KNOB ASSEMBLY
4
Yamaha Motors
KNOB ASSEMBLY26H-8432M-00-00
Required: 1
. KNOB ASSY
Supersedes: 4XY-8432M-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
5
Required: 1
. BULB (12V-4W)
Price unavailable
6
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
Clamp (1GJ)
7
Yamaha Motors
Clamp (1GJ)90464-54086-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
Bolt (4MY)
8
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 1
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COLLAR
10
Yamaha Motors
COLLAR90387-07391-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Grommet
11
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
13
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
