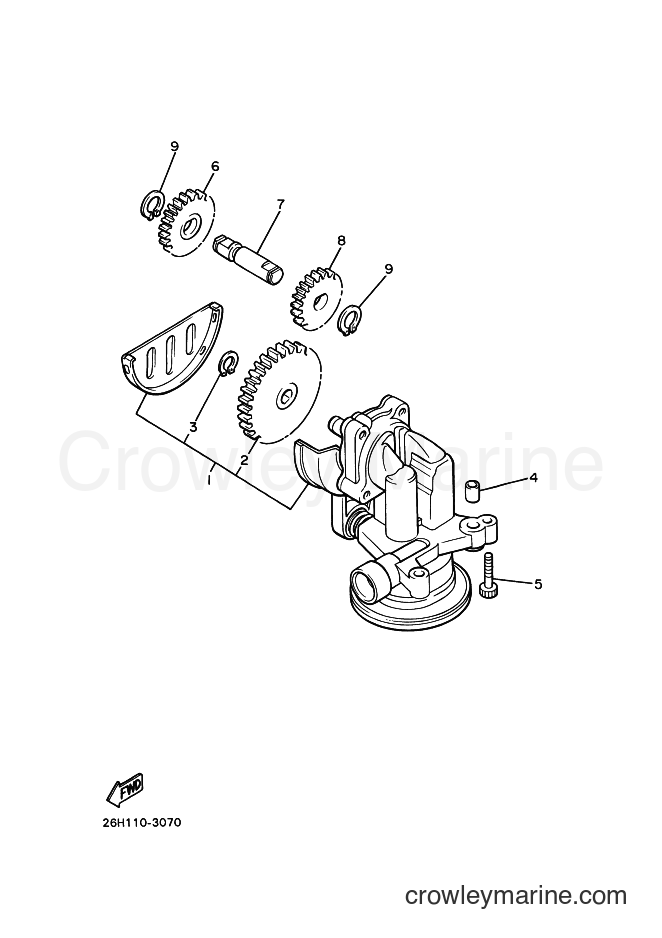

2000 Cruiser XVZ1300A - XVZ1300A (4YP4) [040] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVZ1300A (4YP4) [040] - OIL PUMP
Change View:
OIL PUMP ASSEMBLY
1
Yamaha Motors
OIL PUMP ASSEMBLY26H-13300-02-00
Required: 1
OIL PUMP ASSY
Cross Ship
Leaves in 2-5 days
$313.99
$266.89
You save $47.10
More details
Pump Driven Gear
2
Yamaha Motors
Pump Driven Gear26H-13325-00-00
Required: 1
GEAR, PUMP DRIVEN (28T)
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
PUMP IDLE GEAR
6
Yamaha Motors
PUMP IDLE GEAR26H-13351-01-00
Required: 1
GEAR, PUMP IDLE 1 (16T)
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
Idle Gear Shaft
7
Yamaha Motors
Idle Gear Shaft26H-13342-00-00
Required: 1
SHAFT, IDLE GEAR
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
GEAR,PUMPIDLE 2
8
Yamaha Motors
GEAR,PUMPIDLE 226H-13361-00-00
Required: 1
GEAR, PUMP IDLE 2 (15T)
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
Circlip
9
Yamaha Motors
Circlip99009-12400-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$3.59
$3.05
You save $0.54
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
