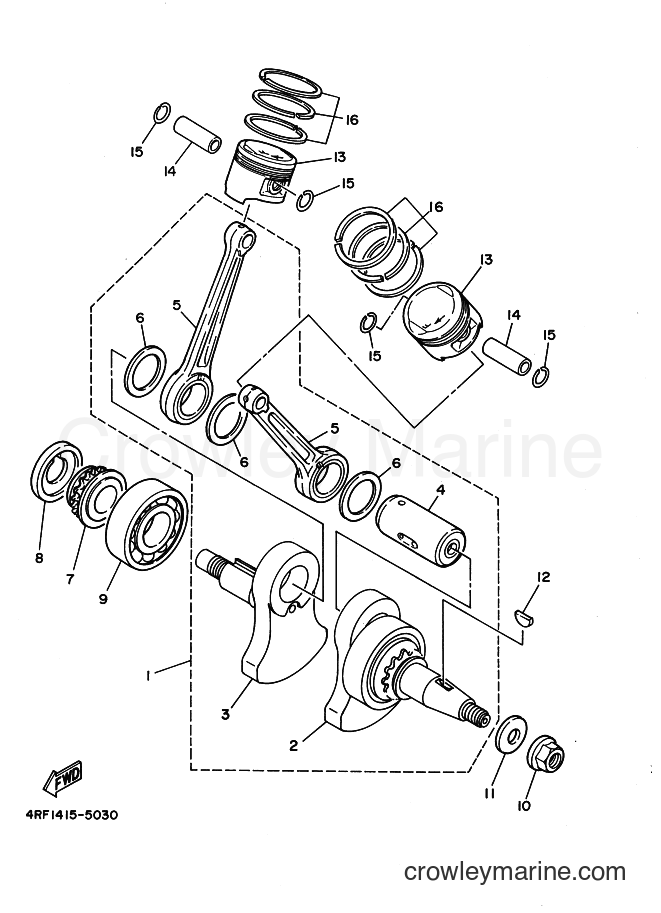

2000 Cruiser XVS125 - XVS125 (5JX2) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVS125 (5JX2) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
CRANK SUB ASSY 1
Price unavailable
3
Required: 1
. CRANK 2
Price unavailable
4
Required: 1
. PIN, CRANK 1
Price unavailable
5
Required: 2
. ROD, CONNECTING
Price unavailable
Special Shape Washer
6
Yamaha Motors
Special Shape Washer90209-31300-00
Required: 3
. WASHER
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
7
Required: 1
SPROCKET, CAM CHAIN 2
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR2UJ-11478-00-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$11.99
$10.19
You save $1.80
More details
Bearing
9
Yamaha Motors
Bearing93306-30630-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
90179-12657-00
10
Yamaha Motors
90179-12657-0090179-12248-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
Plate Washer
11
Yamaha Motors
Plate Washer90201-12191-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Woodruff Key
12
Yamaha Motors
Woodruff Key90280-05001-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-05048-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
13
Required: 2
PISTON (1.00MM O/S)
Price unavailable
13
Required: 2
PISTON (STD)
Price unavailable
13
Required: 2
PISTON (0.50MM O/S)
Price unavailable
Piston Pin
14
Yamaha Motors
Piston Pin22F-11633-00-00
Required: 2
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
Circle Clip
15
Yamaha Motors
Circle Clip93450-14088-00
Required: 4
CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
16
Required: 2
PISTON RING SET (0.50MM O/S)
Price unavailable
16
Required: 2
PISTON RING SET (STD)
Price unavailable
16
Required: 2
PISTON RING SET (1.00MM O/S)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
