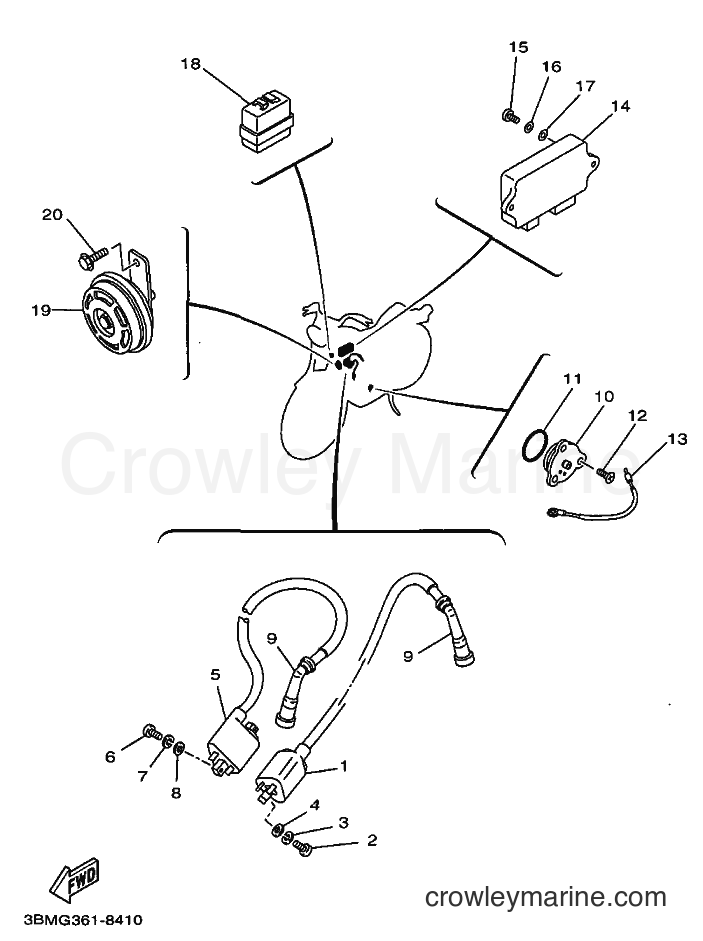

1998 Cruiser XV500 - XV500 (4FTB) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XV500 (4FTB) [010] - ELECTRICAL 2
Change View:
IGNITION COIL ASSEMBLY
1
Yamaha Motors
IGNITION COIL ASSEMBLY2GV-82310-21-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2GV-82310-30-00
Cross Ship
Leaves in 2-5 days
$166.99
$141.94
You save $25.05
More details
Spring Washer
3
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
4
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
IGNITION COIL ASSEMBLY
5
Yamaha Motors
IGNITION COIL ASSEMBLY2GV-82310-21-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2GV-82320-30-00
Cross Ship
Leaves in 2-5 days
$166.99
$141.94
You save $25.05
More details
Spring Washer
7
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
8
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Plug Cap Assembly
9
Yamaha Motors
Plug Cap Assembly4VW-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 2GV-82370-00-00
Cross Ship
Leaves in 2-5 days
$75.99
$64.59
You save $11.40
More details
O-Ring
11
Yamaha Motors
O-Ring93210-29196-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SPECIAL SHAPE SCREW
12
Yamaha Motors
SPECIAL SHAPE SCREW90149-05245-00
Required: 3
SCREW
Supersedes: 90149-05321-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Lead Wire
13
Yamaha Motors
Lead Wire2JX-82541-00-00
Required: 1
WIRE, SUB LEAD
Supersedes: 22U-82509-00-00
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
14
Required: 1
IGNITOR UNIT ASSY
Price unavailable
Flasher Relay Assembly
18
Yamaha Motors
Flasher Relay Assembly41R-83350-72-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 41R-83350-71-00
Cross Ship
Leaves in 2-5 days
$195.99
$166.59
You save $29.40
More details
4KM-83371-00-00
19
Yamaha Motors
4KM-83371-00-0035J-83371-32-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$52.99
$45.04
You save $7.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
