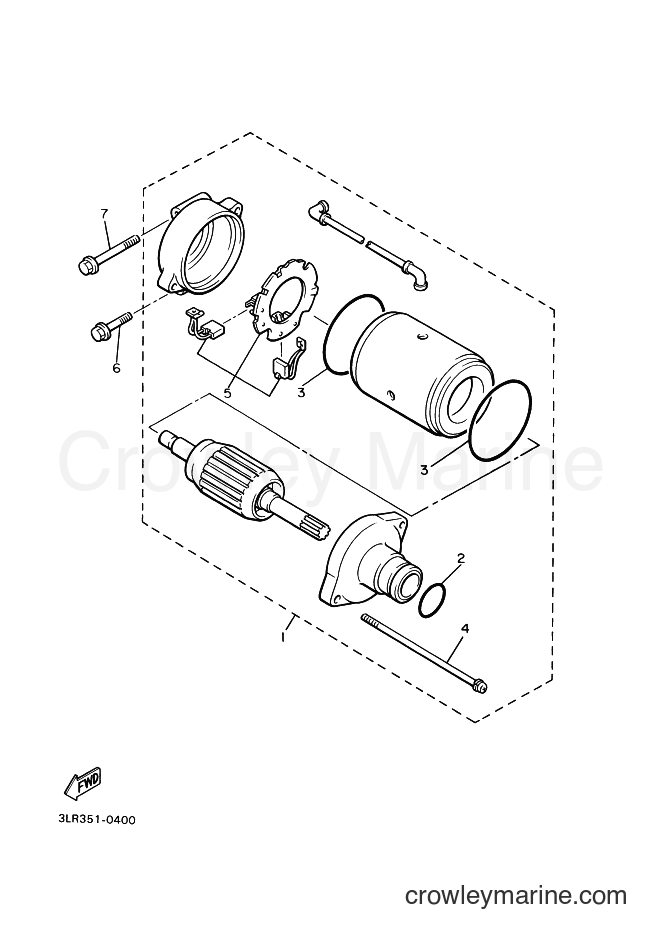

1997 Cruiser XVZ1300A - XVZ1300A (4YP1) [080] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVZ1300A (4YP1) [080] - STARTING MOTOR
Change View:
Lower Motor Unit Assembly
1
Yamaha Motors
Lower Motor Unit Assembly4NK-81890-00-00
Required: 1
STARTING MOTOR ASSY
Supersedes: 4NK-81800-00-00
Cross Ship
Leaves in 2-5 days
$464.99
$395.24
You save $69.75
More details
Tank Cap Gasket
3
Yamaha Motors
Tank Cap Gasket35C-81844-00-00
Required: 2
. GASKET
Supersedes: 11H-81844-00-00
Cross Ship
Leaves in 2-5 days
$53.99
$45.89
You save $8.10
More details
BOLT
4
Yamaha Motors
BOLT3AJ-81826-00-00
Required: 2
. BOLT
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Brush Set
5
Yamaha Motors
Brush Set3AJ-81801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$126.99
$107.94
You save $19.05
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt95811-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-06025-00
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-06055-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-06055-00
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
