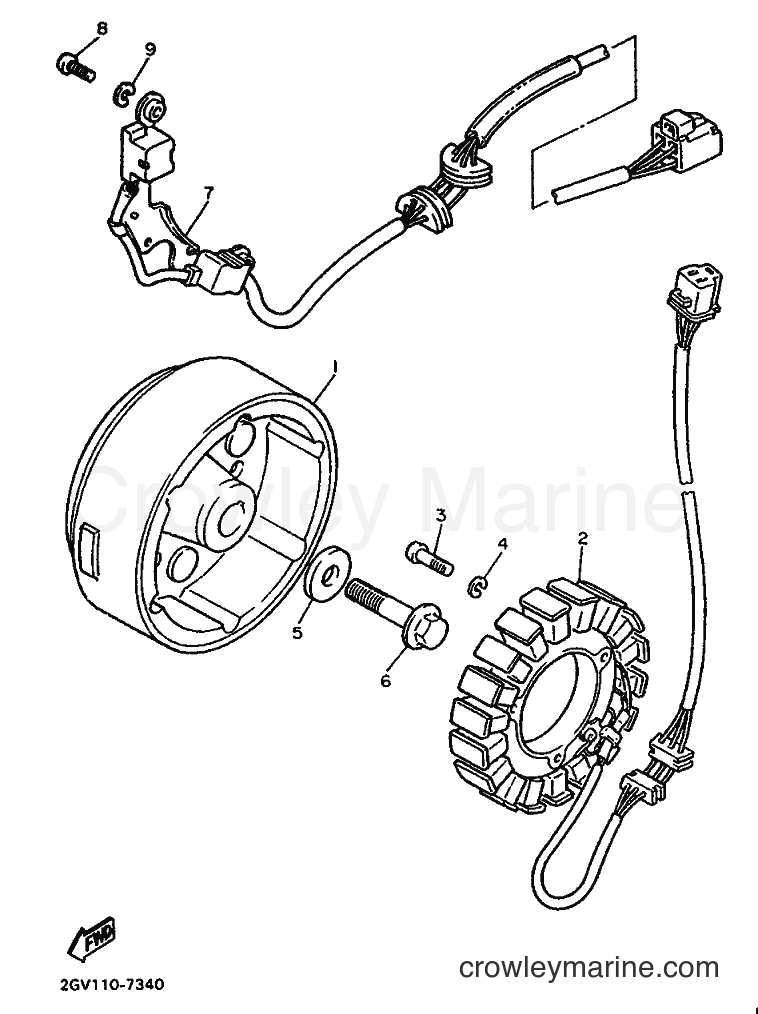

1990 Cruiser XV535 - XV535 (3JC4) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XV535 (3JC4) [010] - GENERATOR
Change View:
ROTOR ASSEMBLY
1
Yamaha Motors
ROTOR ASSEMBLY2GV-81450-20-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$434.99
$369.74
You save $65.25
More details
STATOR ASSEMBLY
2
Yamaha Motors
STATOR ASSEMBLY2GV-81410-20-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$393.99
$334.89
You save $59.10
More details
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 3
SCREW, pan head
Supersedes: 98501-06025-00
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
4
Required: 3
WASHER, spring
Price unavailable
Plate Washer (1WG)
5
Yamaha Motors
Plate Washer (1WG)90201-107K6-00
Required: 1
WASHER, plate
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Washer Based Bolt
6
Yamaha Motors
Washer Based Bolt90105-10152-00
Required: 1
BOLT, washer based
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
PICK-UP ASSEMBLY
7
Yamaha Motors
PICK-UP ASSEMBLY2GV-81670-20-00
Required: 1
PICK-UP ASSY
Cross Ship
Leaves in 2-5 days
$175.99
$149.59
You save $26.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
