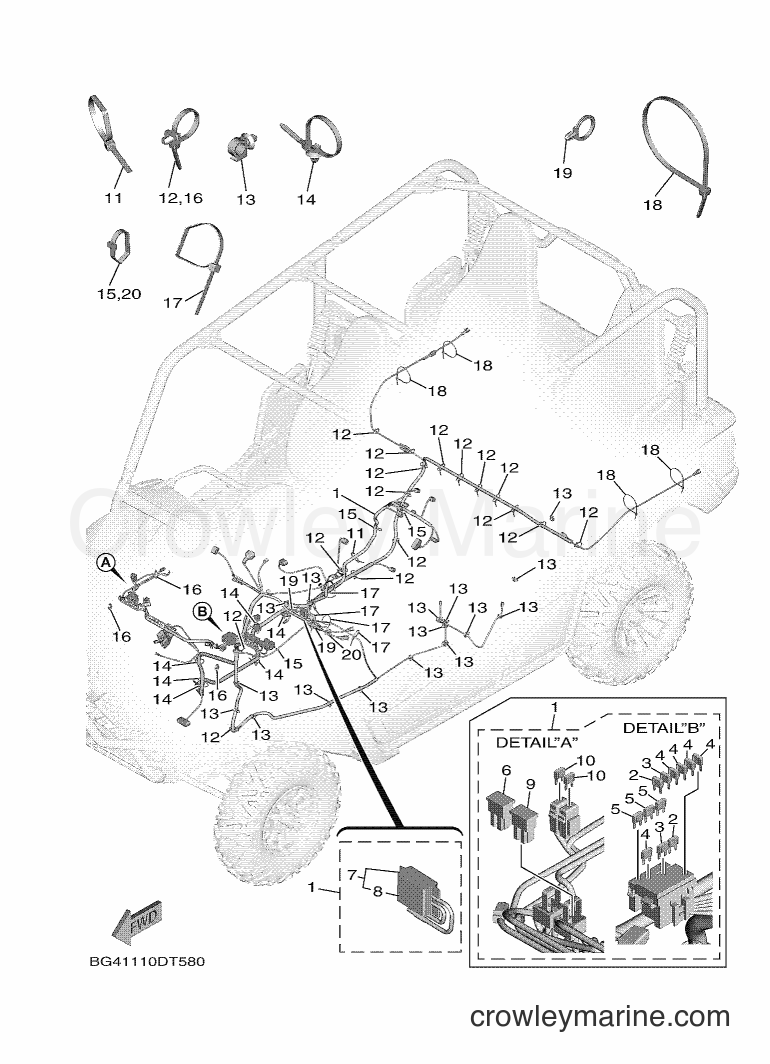

2019 ATV YXF850E - YXF850E (BG4E) [010] ELECTRICAL 3 diagram

1
Yamaha Motors
Wire Harness AssemblyBG4-82590-10-00
Required: 1
WIRE HARNESS ASSY
$1080.34
You save $190.65

2
Yamaha Motors
Fuse (12V/10A)5JJ-82151-60-00
Required: 2
. FUSE (30A-BL)
$7.22
You save $1.27
3
Yamaha Motors
Fuse (15A)67F-82151-50-00
Required: 2
. FUSE (15A-BL)
Supersedes: 5JJ-82151-10-00
$3.44
You save $0.61

4
Yamaha Motors
FUSE (7.5A-BL)5JJ-82151-00-00
Required: 5
. FUSE (7.5A-BL)
$6.37
You save $1.12

5
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 3
. FUSE (10A-BL)
Supersedes: 5JJ-82151-30-00
$6.03
You save $1.07

6
Yamaha Motors
Slow Blow FuseJR9-82151-00-00
Required: 1
. FUSE (40A)
Supersedes: 5PS-82151-00-00
$11.47
You save $2.02

7
Yamaha Motors
Circuit Breaker Assembly5B4-82180-00-00
Required: 1
. CIRCUIT BREAKER ASSY
$40.79
You save $7.20

8
Yamaha Motors
Thermo Switch Assembly5B4-82560-00-00
Required: 1
. . THERMO SWITCH ASSY
$52.69
You save $9.30
$15.29
You save $2.70

10
Yamaha Motors
Fuse (20A-BL)5JJ-82151-20-00
Required: 2
. FUSE (20A-BL)
$7.22
You save $1.27
$4.17
You save $0.74
$3.06
You save $0.54
$1.36
You save $0.24
$3.06
You save $0.54
$3.15
You save $0.56
$3.06
You save $0.54
$2.59
You save $0.46
$5.52
You save $0.97
$1.53
You save $0.27
$3.15
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
