All diagrams for this model

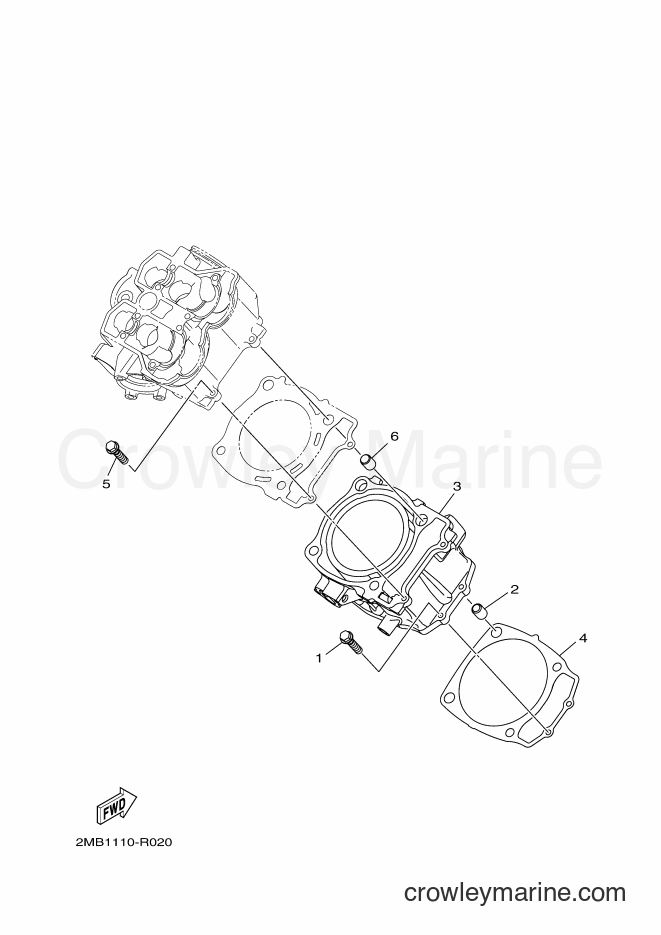

2018 ATV YXE700E - YXE700E (B3D2) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YXE700E (B3D2) [010] - CYLINDER
Change View:
Bolt
1
Yamaha Motors
Bolt2MB-E5481-20-00
Required: 2
BOLT 1
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
Dowel Pin
2
Yamaha Motors
Dowel Pin2MB-E5182-00-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Cylinder Gasket
4
Yamaha Motors
Cylinder Gasket2MB-E1351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
Bolt
5
Yamaha Motors
Bolt2MB-E5481-20-00
Required: 2
BOLT 1
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
Dowel Pin
6
Yamaha Motors
Dowel Pin2MB-E5182-00-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
