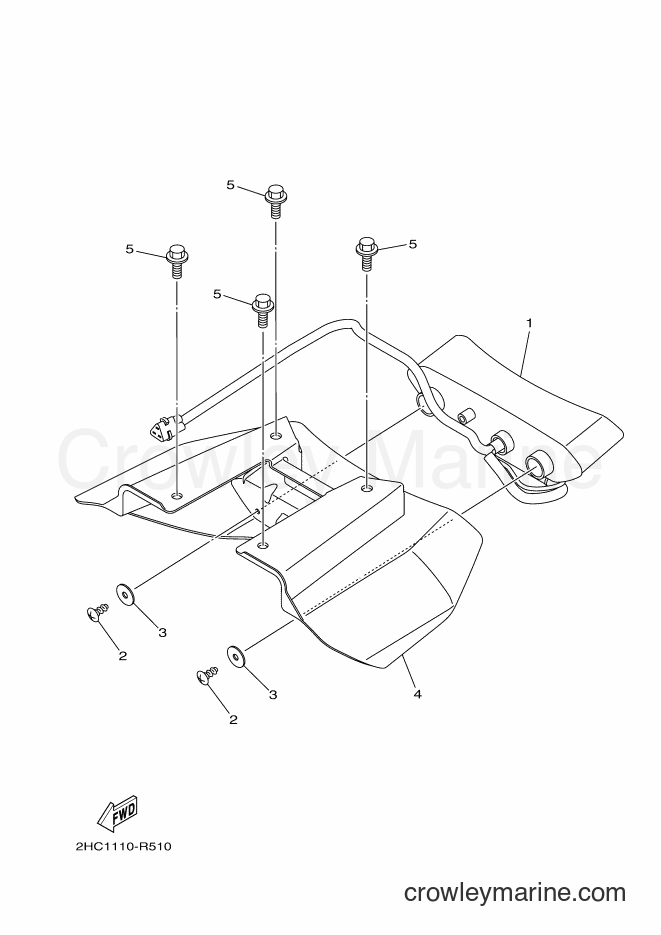

Yamaha Motors YXZ1000E (2HCB) [010] - TAILLIGHT
Change View:
TAILLIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAILLIGHT UNIT ASSEMBLY1S3-84710-10-00
Required: 1
TAILLIGHT UNIT ASSY
Cross Ship
Leaves in 2-5 days
$185.99
$158.09
You save $27.90
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
TAIL LIGHT COVER
4
Yamaha Motors
TAIL LIGHT COVER2HC-F172X-00-00
Required: 1
COVER, TAILLIGHT
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
