2017 ATV YXE700ES - YXE700ES (BN45) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

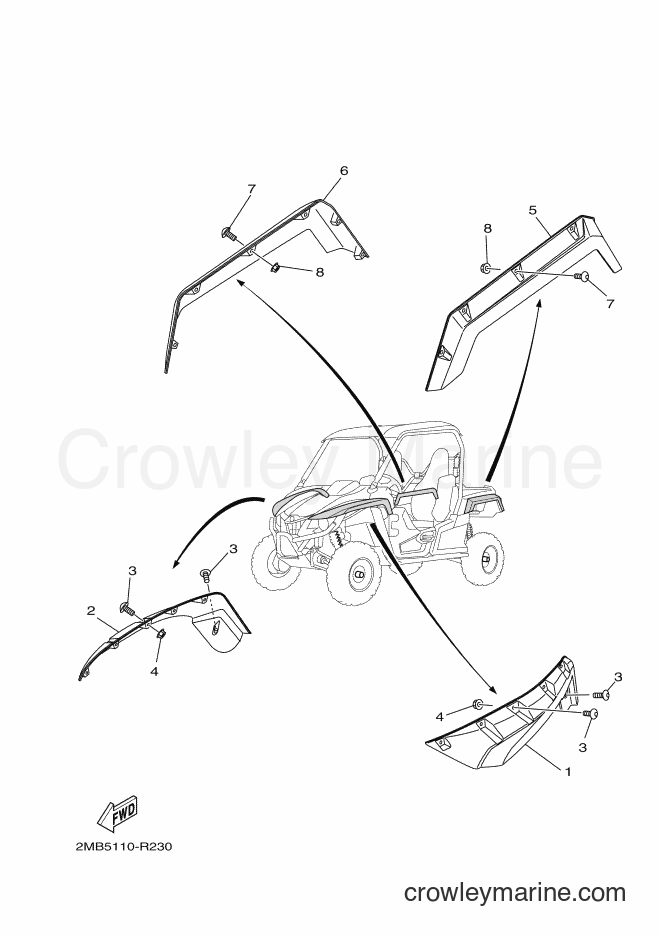

Yamaha Motors YXE700ES (BN45) [010] - FENDER
Change View:
Over Fender
1
Yamaha Motors
Over Fender2MB-F1551-00-00
Required: 1
FENDER, OVER
Cross Ship
Leaves in 2-5 days
$73.99
$62.89
You save $11.10
More details
OVER FENDER
2
Yamaha Motors
OVER FENDER2MB-F1555-00-00
Required: 1
FENDER, OVER 2
Cross Ship
Leaves in 2-5 days
$73.99
$62.89
You save $11.10
More details
U Flange Nut
4
Yamaha Motors
U Flange Nut95604-06200-00
Required: 10
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
Cross Ship
Leaves in 2-5 days
$2.95
$2.51
You save $0.44
More details
OVER FENDER 3
5
Yamaha Motors
OVER FENDER 32MB-F1559-00-00
Required: 1
FENDER, OVER 3
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details
OVER FENDER
6
Yamaha Motors
OVER FENDER2MB-F1560-00-00
Required: 1
FENDER, OVER 4
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details
U Flange Nut
8
Yamaha Motors
U Flange Nut95604-06200-00
Required: 12
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
Cross Ship
Leaves in 2-5 days
$2.95
$2.51
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
