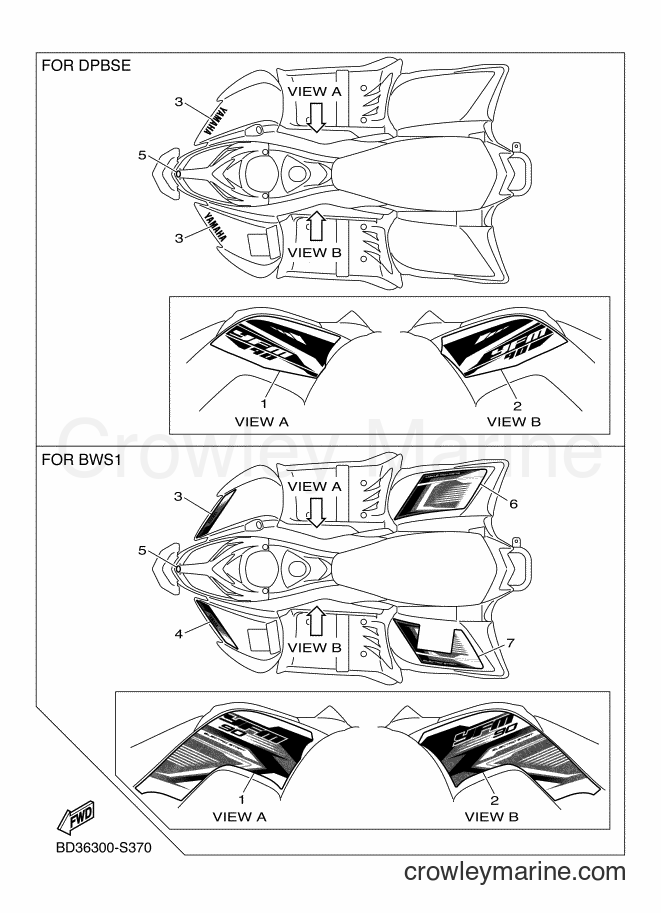

2017 ATV YFM90R - YFM90R (BD36) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM90R (BD36) [010] - GRAPHICS
Change View:
1
Required: 1
GRAPHIC 2
Price unavailable
2
Required: 1
GRAPHIC 4
Price unavailable
YAMAHA EMBLEM
3
Yamaha Motors
YAMAHA EMBLEMBD3-F153E-10-00
Required: 2
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Tuning Fork Mark
5
Yamaha Motors
Tuning Fork MarkBD3-F175B-00-00
Required: 1
TUNING FORK MARK
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
GRAPHIC SET 2
6
Yamaha Motors
GRAPHIC SET 2BD3-F167B-00-00
Required: 1
GRAPHIC SET 2
Cross Ship
Leaves in 2-5 days
$88.99
$75.64
You save $13.35
More details
Graphic Set
7
Yamaha Motors
Graphic SetBD3-F167A-00-00
Required: 1
GRAPHIC SET
Cross Ship
Leaves in 2-5 days
$85.99
$73.09
You save $12.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
