All diagrams for this model

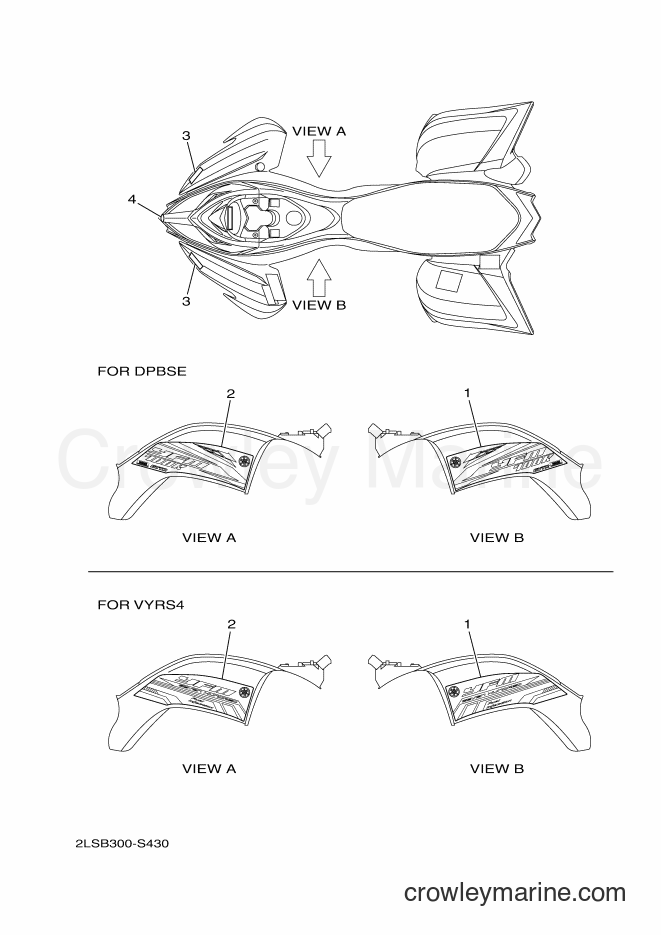

2017 ATV YFM700R - YFM700R (2LSB) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM700R (2LSB) [010] - GRAPHICS
Change View:
Front Fender Graphic
1
Yamaha Motors
Front Fender Graphic2LS-F1571-80-00
Required: 1
GRAPHIC, FRONT FENDER 1
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
Front Fender Graphic
2
Yamaha Motors
Front Fender Graphic2LS-F1572-80-00
Required: 1
GRAPHIC, FRONT FENDER 2
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Tuning Fork Mark
4
Yamaha Motors
Tuning Fork Mark4KN-2836B-10-00
Required: 1
TUNING FORK MARK
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
