2017 ATV YFM700R - YFM700R (2LSA) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

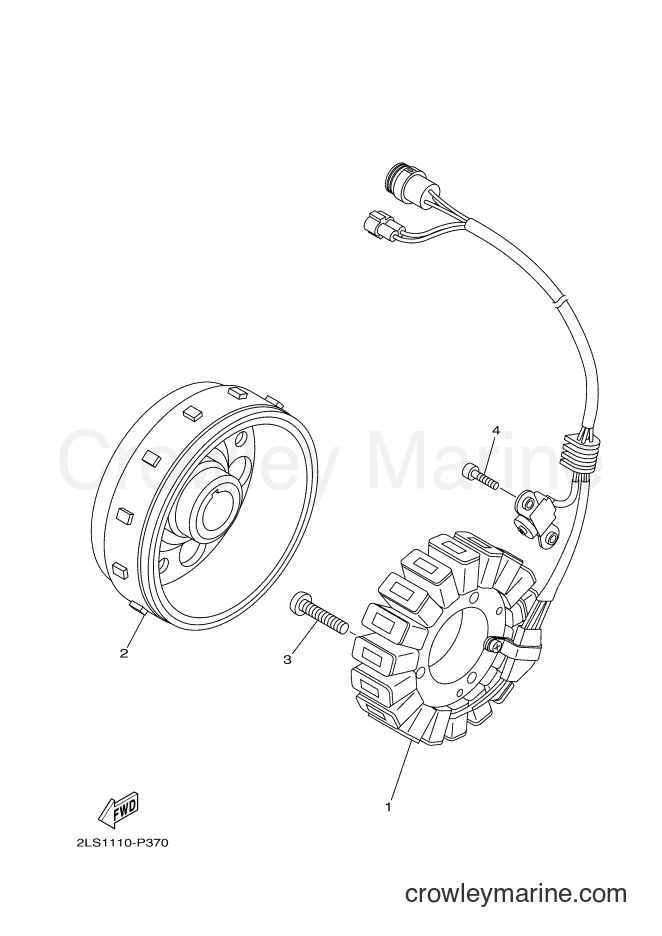

Yamaha Motors YFM700R (2LSA) [010] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly1S3-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$613.99
$521.89
You save $92.10
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly2LS-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$467.99
$397.79
You save $70.20
More details
Button head bolt
3
Yamaha Motors
Button head bolt92012-06030-00
Required: 3
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
BOLT
4
Yamaha Motors
BOLT91312-05014-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05031-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
