2017 ATV YFM700FWBD - YFM700FWBD (2SMF) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

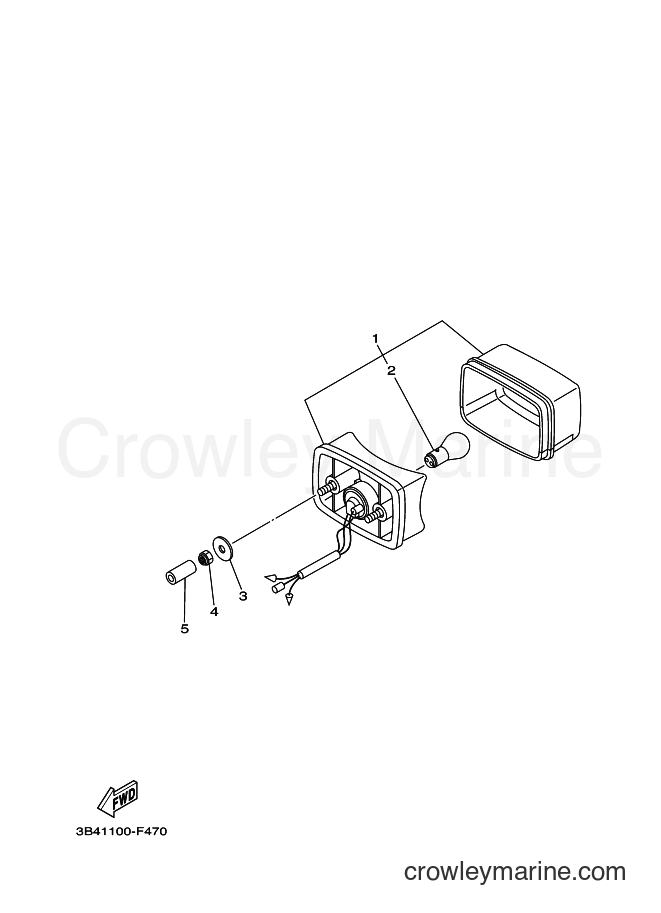

Yamaha Motors YFM700FWBD (2SMF) [010] - TAILLIGHT
Change View:
TAIL LIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY3FA-84710-01-00
Required: 1
TAILLIGHT UNIT ASSY
Supersedes: 3FA-84710-00-00
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
Plain Washer
3
Yamaha Motors
Plain Washer90201-06097-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Nut
4
Yamaha Motors
Flange Nut95707-06300-00
Required: 2
NUT, NYLON
Supersedes: 95702-06300-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Pipe 5
5
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 1
HOSE (L30)
Supersedes: 90445-09220-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
