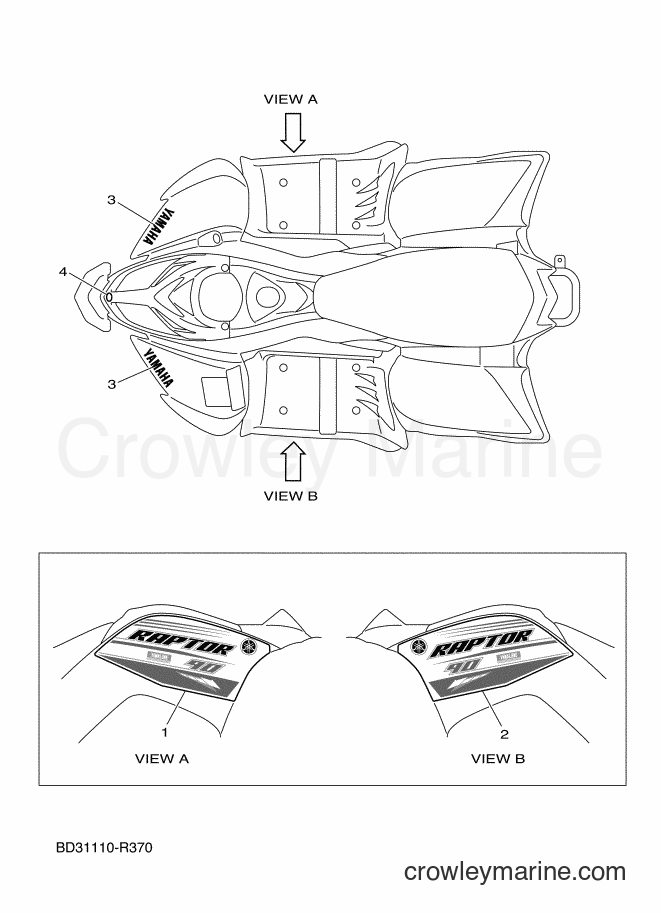

2016 ATV YFM90R - YFM90R (BD32) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM90R (BD32) [010] - GRAPHICS
Change View:
Graphic 1
1
Yamaha Motors
Graphic 1BD3-F137N-00-00
Required: 1
GRAPHIC 1
Cross Ship
Leaves in 2-5 days
$192.99
$164.04
You save $28.95
More details
GRAPHIC 3
2
Yamaha Motors
GRAPHIC 3BD3-F137R-00-00
Required: 1
GRAPHIC 3
Cross Ship
Leaves in 2-5 days
$151.99
$129.19
You save $22.80
More details
YAMAHA EMBLEM
3
Yamaha Motors
YAMAHA EMBLEMBD3-F153E-00-00
Required: 2
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Tuning Fork Mark
4
Yamaha Motors
Tuning Fork MarkBD3-F175B-00-00
Required: 1
TUNING FORK MARK
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
