All diagrams for this model

2016 ATV YFM450FWAD - YFM450FWAD (2LCD) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

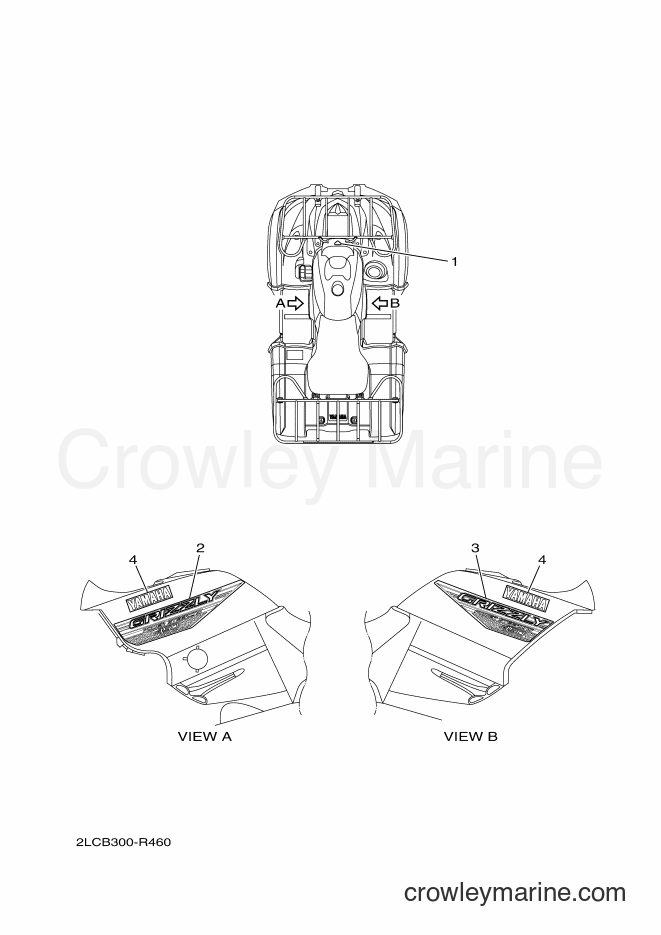

Yamaha Motors YFM450FWAD (2LCD) [010] - GRAPHICS
Change View:
EMBLEM 3D
1
Yamaha Motors
EMBLEM 3DB16-F6232-00-00
Required: 1
EMBLEM 3D
Cross Ship
Leaves in 2-5 days
$23.99
$20.39
You save $3.60
More details
EMBLEM 1 (YAMAHA EF2000IS)
2
Yamaha Motors
EMBLEM 1 (YAMAHA EF2000IS)2LC-F1781-50-00
Required: 1
EMBLEM 1
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
Emblem
3
Yamaha Motors
Emblem2LC-F1782-50-00
Required: 1
EMBLEM 2
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
YAMAHA EMBLEM
4
Yamaha Motors
YAMAHA EMBLEM2BG-F153A-01-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 2BG-F153A-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
