All diagrams for this model

2015 ATV YXC700 - YXC700 (2PG2) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

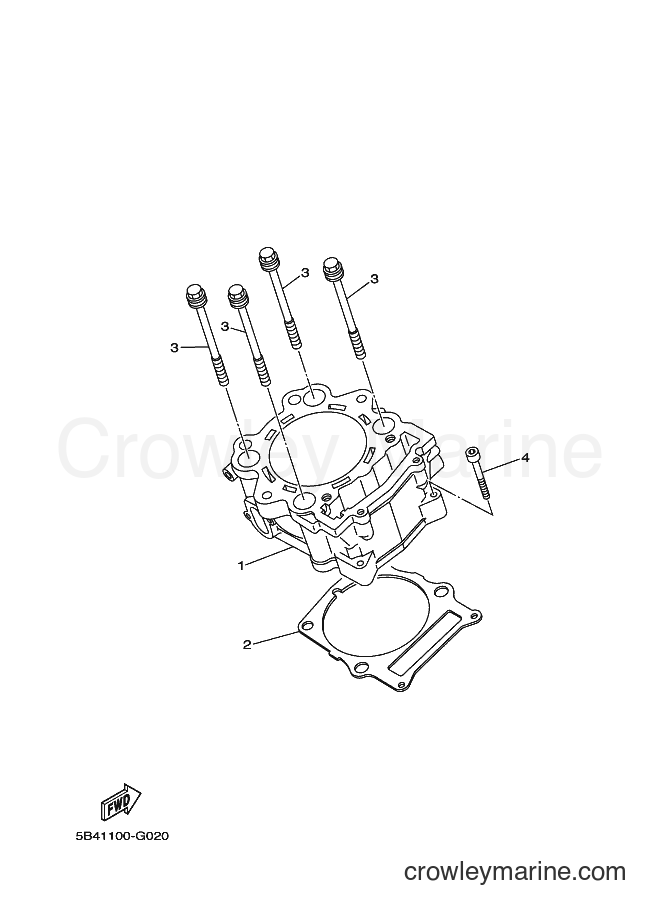

Yamaha Motors YXC700 (2PG2) [010] - CYLINDER
Change View:
Cylinder
1
Yamaha Motors
Cylinder3B4-11311-10-00
Required: 1
CYLINDER 1
Cross Ship
Leaves in 2-5 days
$900.99
$765.84
You save $135.15
More details
Cylinder Gasket
2
Yamaha Motors
Cylinder Gasket1S3-11351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$30.99
$26.34
You save $4.65
More details
Bolt with Washer
3
Yamaha Motors
Bolt with Washer90119-10023-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
BOLT
4
Yamaha Motors
BOLT91312-06040-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
