All diagrams for this model

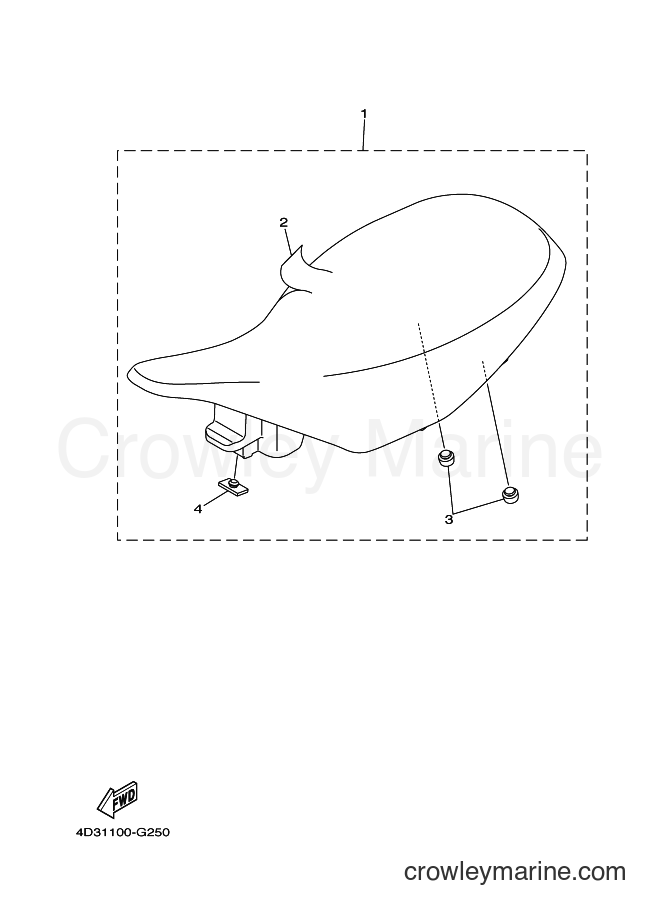

2013 ATV YFM250R - YFM250R (1BTN) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM250R (1BTN) [010] - SEAT
Change View:
SINGLE SEAT ASSY
1
Yamaha Motors
SINGLE SEAT ASSY4D3-24710-01-00
Required: 1
SINGLE SEAT ASSY
Supersedes: 4D3-24710-00-00
Cross Ship
Leaves in 2-5 days
$193.99
$164.89
You save $29.10
More details
1
Required: 1
SINGLE SEAT ASSY
Price unavailable
SEAT COVER - COMPLETE
2
Yamaha Motors
SEAT COVER - COMPLETE4D3-2470F-00-00
Required: 1
. SEAT COVER COMP.
Cross Ship
Leaves in 2-5 days
$88.99
$75.64
You save $13.35
More details
2
Required: 1
. SEAT COVER COMP.
Price unavailable
MAIN STAND STOPPER
3
Yamaha Motors
MAIN STAND STOPPER157-27114-00-00
Required: 2
. STOPPER, MAIN STAND
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Seat Damper
4
Yamaha Motors
Seat Damper509-24724-00-00
Required: 1
. DAMPER, SEAT
Cross Ship
Leaves in 2-5 days
$11.99
$10.19
You save $1.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
