All diagrams for this model

2012 ATV YFM90R - YFM90R (43DC) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

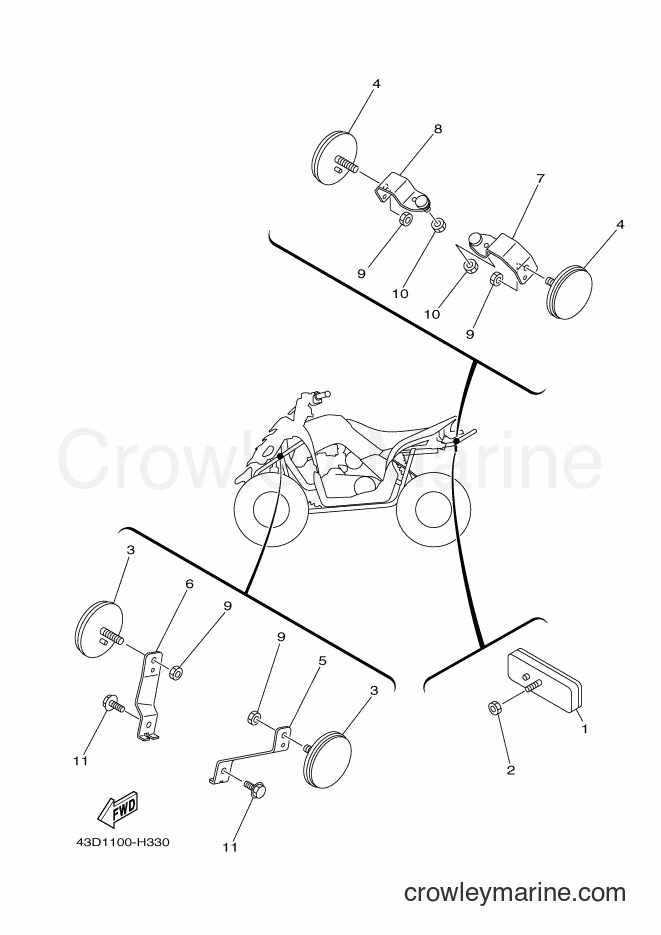

Yamaha Motors YFM90R (43DC) [010] - ELECTRICAL 2
Change View:
REAR REFLECTOR ASSEMBLY
1
Yamaha Motors
REAR REFLECTOR ASSEMBLY43D-H5130-00-00
Required: 1
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Flange Nut
2
Yamaha Motors
Flange Nut95704-05500-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
3
Required: 2
REFLECTOR, FRONT 1
Price unavailable
4
Required: 2
REFLECTOR, FRONT 2
Price unavailable
5
Required: 1
STAY 1
Price unavailable
6
Required: 1
STAY 2
Price unavailable
7
Required: 1
STAY 1
Price unavailable
8
Required: 1
STAY 2
Price unavailable
Nut
9
Yamaha Motors
Nut95317-06600-00
Required: 4
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
NUT 2
10
Yamaha Motors
NUT 243D-F1536-00-00
Required: 2
NUT 2
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt95822-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.10
$0.08
You save $0.01
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
