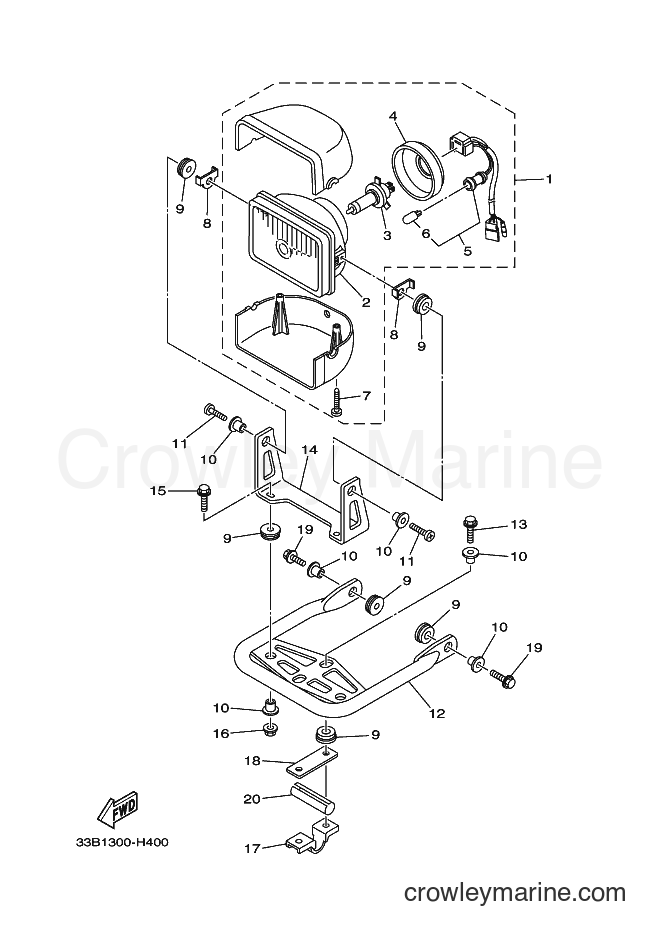

2012 ATV YFM250R - YFM250R (33B7) [010] HEADLIGHT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM250R (33B7) [010] - HEADLIGHT 2
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
3
Required: 1
. BULB, HEADLIGHT(HS1 12V35/35W)
Price unavailable
4
Required: 1
. COVER, SOCKET
Price unavailable
5
Required: 1
. CORD, HEADLIGHT
Price unavailable
6
Required: 1
. . BULB (12V-5W)
Price unavailable
7
Required: 2
. SCREW
Price unavailable
8
Required: 2
BRACKET
Price unavailable
9
Required: 8
GROMMET
Price unavailable
10
Required: 8
COLLAR
Price unavailable
11
Required: 2
SCREW, BINDING
Price unavailable
12
Required: 1
STAY, HEADLIGHT 1
Price unavailable
13
Required: 2
BOLT, FLANGE
Price unavailable
14
Required: 1
STAY, HEADLIGHT 2
Price unavailable
15
Required: 2
BOLT, FLANGE
Price unavailable
Nut
16
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
17
Required: 1
BRACKET, HEADLIGHT STAY 2
Price unavailable
18
Required: 1
PLATE, FITTING
Price unavailable
19
Required: 2
BOLT, FLANGE
Price unavailable
20
Required: 1
PROTECTOR 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
