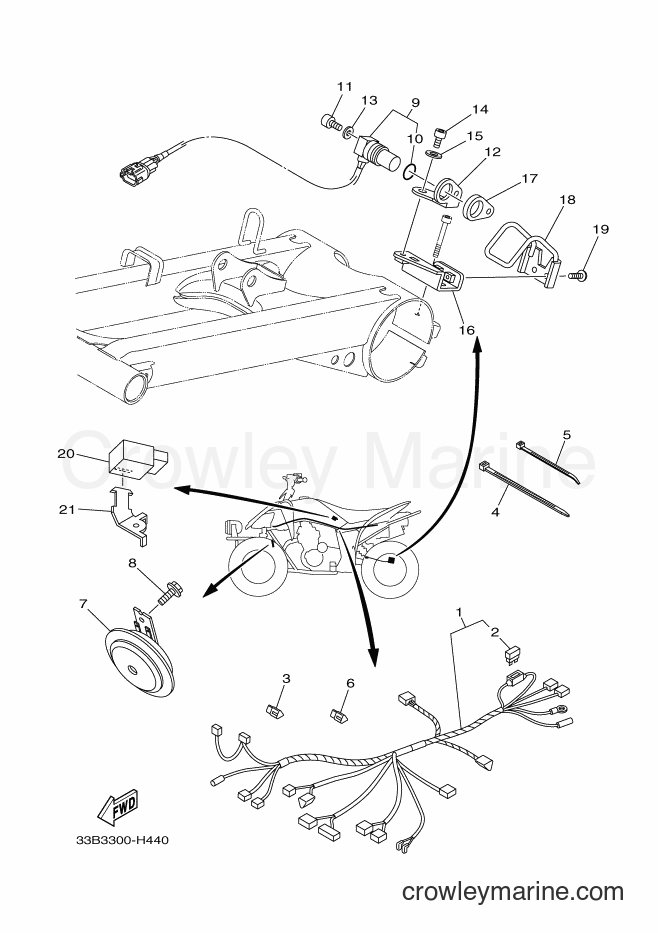

2012 ATV YFM250R - YFM250R (33B7) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM250R (33B7) [010] - ELECTRICAL 2
Change View:
1
Required: 1
WIRE HARNESS ASSY
Price unavailable
2
Required: 1
. FUSE (7.5A)
Price unavailable
3
Required: 1
PLUG
Price unavailable
Switch Cord Band
4
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 14
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
5
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 9
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
6
Required: 2
PLUG 1
Price unavailable
7
Required: 1
HORN
Price unavailable
8
Required: 1
BOLT, FLANGE
Price unavailable
SENSOR, SPEED
9
Yamaha Motors
SENSOR, SPEED5LP-83755-02-00
Required: 1
SENSOR, SPEED
Supersedes: 5LP-83755-01-00
Cross Ship
Leaves in 2-5 days
$195.99
$166.59
You save $29.40
More details
11
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
12
Required: 1
BRACKET, SENSOR SUPPORT 1
Price unavailable
Plain Washer
13
Yamaha Motors
Plain Washer90201-06X01-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
14
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
15
Required: 1
WASHER, PLATE
Price unavailable
16
Required: 1
BRACKET, SENSOR SUPPORT 2
Price unavailable
17
Required: 1
BRACKET, SENSOR FITTING 1
Price unavailable
18
Required: 1
COVER, SENSOR
Price unavailable
19
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
20
Required: 1
FLASHER RELAY ASSY
Price unavailable
21
Required: 1
BRACKET, FLASHER RELAY 1
Price unavailable
