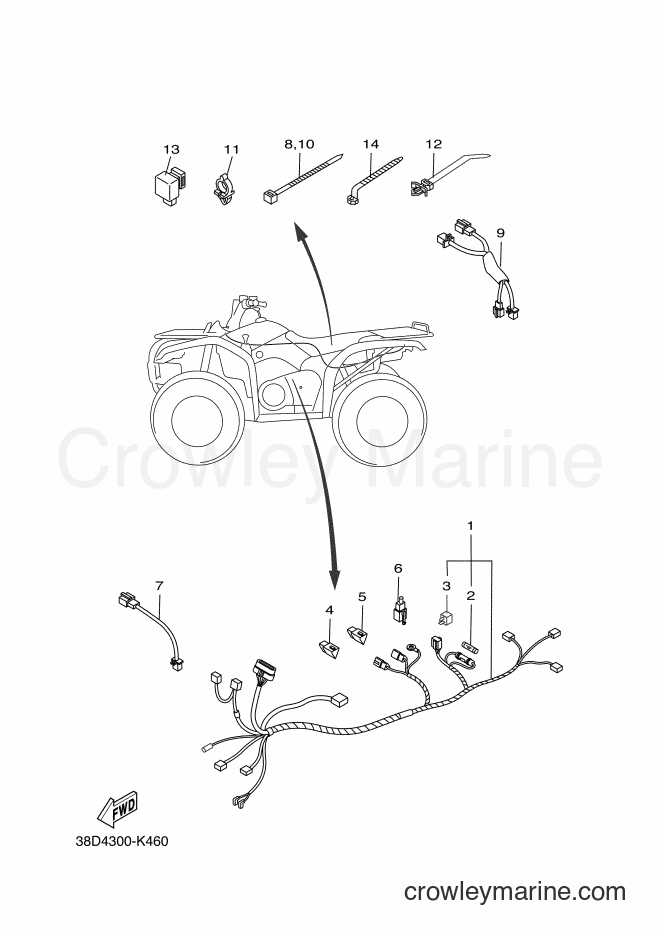

2011 ATV YFM350A - YFM350A (38D4) [030] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM350A (38D4) [030] - ELECTRICAL 2
Change View:
1
Required: 1
WIRE HARNESS ASSY
Price unavailable
2
Required: 1
. FUSE (7.5A)
Price unavailable
3
Required: 2
. DIODE ASSY
Price unavailable
4
Required: 1
PLUG
Price unavailable
5
Required: 2
PLUG 1
Price unavailable
6
Required: 1
CAP, PLUG
Price unavailable
7
Required: 1
WIRE, LEAD
Price unavailable
Switch Cord Band
8
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
WIRE, LEAD
Price unavailable
Switch Cord Band
10
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
11
Yamaha Motors
Clamp90464-12830-00
Required: 2
CLAMP
Supersedes: 90464-10833-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
Clamp
12
Yamaha Motors
Clamp90464-25800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Flasher Relay Assembly
13
Yamaha Motors
Flasher Relay Assembly3XV-83350-21-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$65.99
$56.09
You save $9.90
More details
Switch Cord Band
14
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
