2010 ATV YFM700FWAD - YFM700FWAD (43PY) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

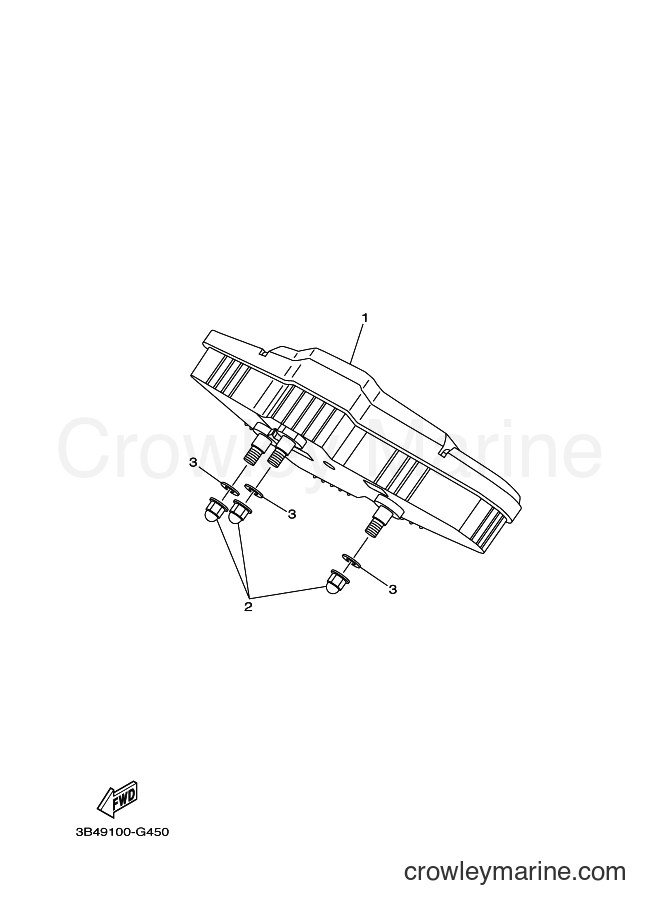

Yamaha Motors YFM700FWAD (43PY) [010] - METER
Change View:
METER ASSEMBLY
1
Yamaha Motors
METER ASSEMBLY34D-83500-11-00
Required: 1
METER ASSY
Cross Ship
Leaves in 2-5 days
$551.99
$469.19
You save $82.80
More details
Crown Nut
2
Yamaha Motors
Crown Nut95302-05800-00
Required: 3
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Plain Washer
3
Yamaha Motors
Plain Washer90201-05039-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
