All diagrams for this model

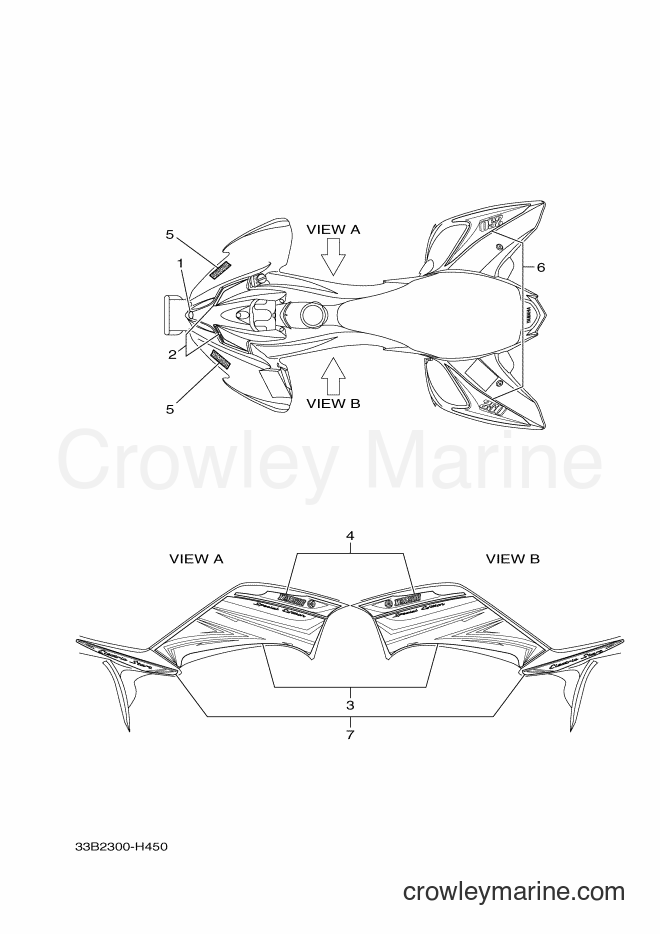

2009 ATV YFM250R - YFM250R (33B2) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM250R (33B2) [010] - GRAPHICS
Change View:
Tuning Fork Mark
1
Yamaha Motors
Tuning Fork Mark4KN-2836B-10-00
Required: 1
TUNING FORK MARK
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
Graphic Set
2
Yamaha Motors
Graphic Set4D3-2159A-00-00
Required: 1
GRAPHIC SET 1
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
Front Fender Graphic Set
3
Yamaha Motors
Front Fender Graphic Set4D3-21570-40-00
Required: 1
GRAPHIC SET, FRONT FENDER
Cross Ship
Leaves in 2-5 days
$276.41
$234.95
You save $41.46
More details
4
Required: 1
GRAPHIC SET, FRONT FENDER
Price unavailable
YAMAHA EMBLEM
5
Yamaha Motors
YAMAHA EMBLEM3GD-2153E-11-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 3GD-2153E-10-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
6
Required: 1
GRAPHIC SET
Price unavailable
GRAPHIC SET 2
7
Yamaha Motors
GRAPHIC SET 24D3-2167B-30-00
Required: 1
GRAPHIC SET 2
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
