All diagrams for this model

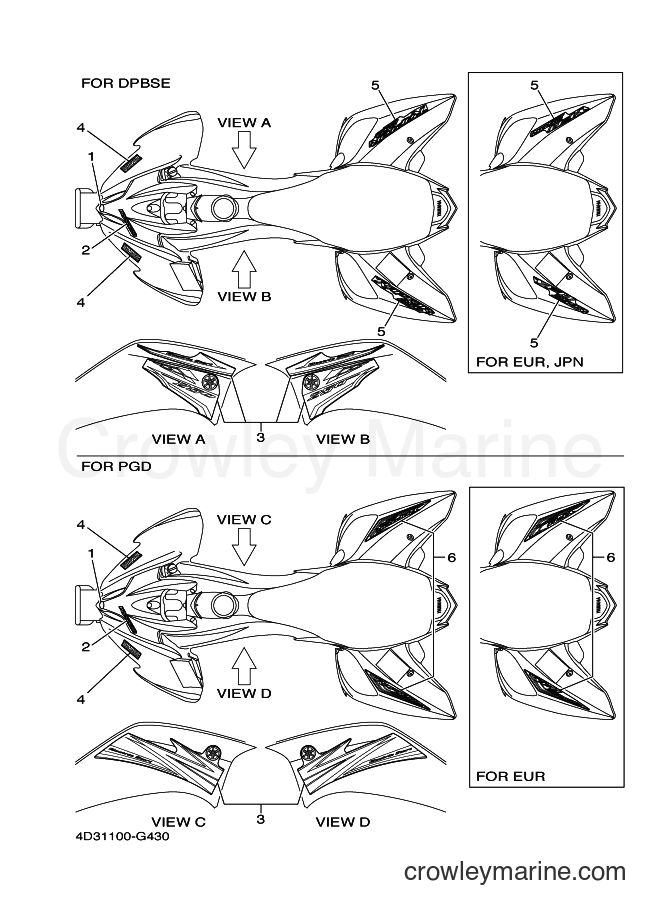

2008 ATV YFS250 - YFS250 (4D33) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFS250 (4D33) [010] - GRAPHICS
Change View:
Tuning Fork Mark
1
Yamaha Motors
Tuning Fork Mark4KN-2836B-10-00
Required: 1
TUNING FORK MARK
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
EMBLEM
2
Yamaha Motors
EMBLEM4D3-21565-00-00
Required: 1
EMBLEM, 2
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Front Fender Graphic Set
3
Yamaha Motors
Front Fender Graphic Set4D3-21570-00-00
Required: 1
GRAPHIC SET, FRONT FENDER
Cross Ship
Leaves in 2-5 days
$68.76
$58.45
You save $10.31
More details
YAMAHA EMBLEM
4
Yamaha Motors
YAMAHA EMBLEM3GD-2153E-01-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 3GD-2153E-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 2
EMBLEM
Price unavailable
Emblem / Rear APPLIQUE
5
Yamaha Motors
Emblem / Rear APPLIQUE4D3-21609-00-00
Required: 2
EMBLEM
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
