All diagrams for this model

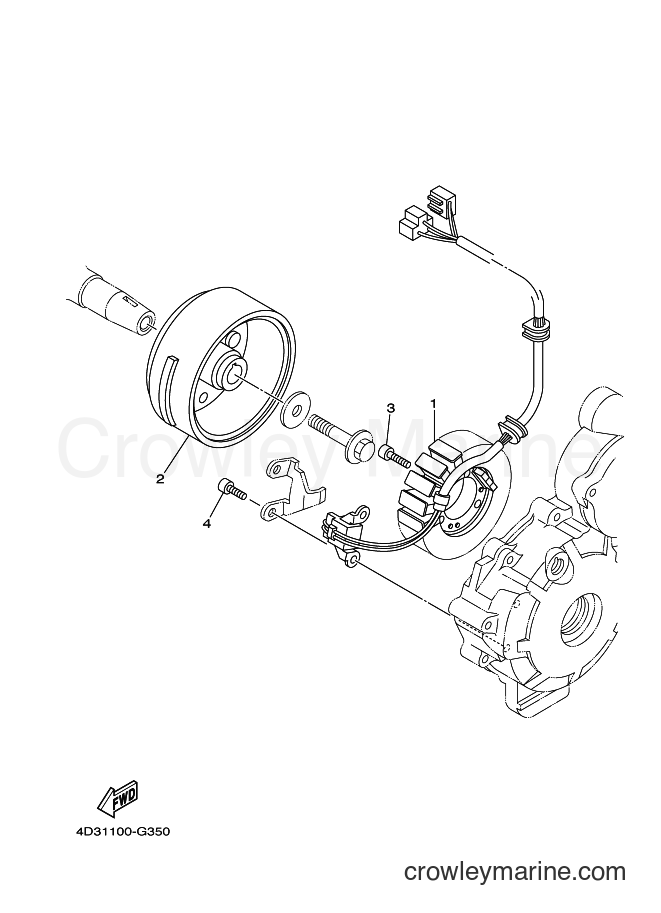

2008 ATV YFS250 - YFS250 (4D32) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFS250 (4D32) [010] - GENERATOR
Change View:
STATOR ASSY
1
Yamaha Motors
STATOR ASSY4D3-81410-02-00
Required: 1
STATOR ASSY
Supersedes: 4D3-81410-00-00
Cross Ship
Leaves in 2-5 days
$252.99
$215.04
You save $37.95
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly5XT-81450-01-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$372.99
$317.04
You save $55.95
More details
Bolt (4MY)
4
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06161-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
