All diagrams for this model

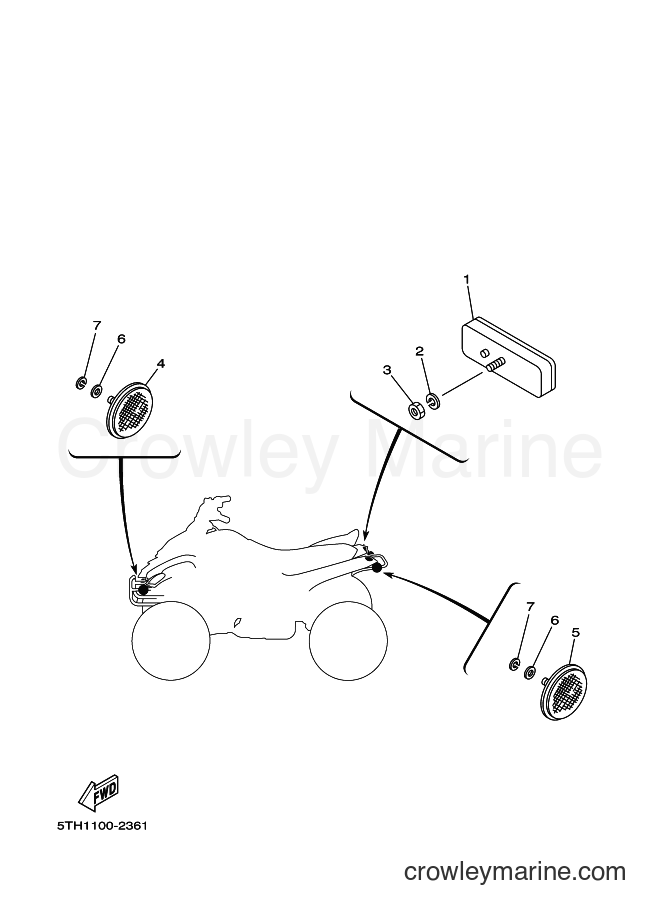

2008 ATV YFM80W - YFM80W (5THM) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFM80W (5THM) [010] - ELECTRICAL 2
Change View:
3Y6-85130-01-00
1
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
Reflector - Front
4
Yamaha Motors
Reflector - Front2EK-85111-00-00
Required: 2
REFLECTOR, FRONT 1
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
Rear Reflector
5
Yamaha Motors
Rear Reflector449-85131-02-00
Required: 2
REFLECTOR, REAR 1
Cross Ship
Leaves in 2-5 days
$33.99
$28.89
You save $5.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
