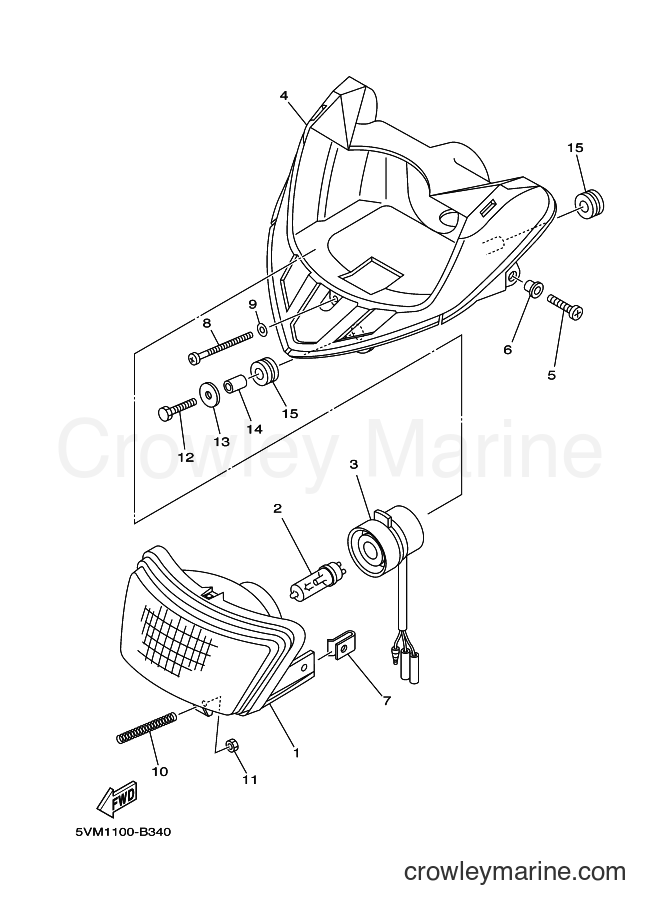

2005 ATV YF200S - YF200S (5VM5) [020] HEADLIGHT diagram
1
Yamaha Motors
Headlight Unit Assembly5VM-84310-00-00
Required: 1
HEADLIGHT UNIT ASSY
$73.94
You save $13.05
2
Yamaha Motors
BULB, 12V35/36.5 AT5VM-84314-00-00
Required: 1
BULB, HEADLIGHT (12V-35/36.5W)
$39.94
You save $7.05

3
Yamaha Motors
Socket Cord Assembly 15VM-84340-00-00
Required: 1
SOCKET CORD ASSY 1
$23.79
You save $4.20
4
Yamaha Motors
HEADLIGHT BODY5VM-84111-00-00
Required: 1
BODY, HEADLIGHT
$32.29
You save $5.70

5
Yamaha Motors
Special Screw5VM-84192-00-00
Required: 2
SCREW, SPECIAL
$1.87
You save $0.33

6
Yamaha Motors
SCREW COLLAR5VM-84133-00-00
Required: 2
COLLAR, SCREW
$1.87
You save $0.33
$6.37
You save $1.12

8
Yamaha Motors
ADJUSTING SCREW5VM-8433E-00-00
Required: 1
SCREW, ADJUSTING
$2.17
You save $0.38

9
Yamaha Motors
Plain Washer5VM-84344-00-00
Required: 1
WASHER, PLAIN
$1.87
You save $0.33
$2.34
You save $0.41

11
Yamaha Motors
Adjusting Nut5VM-84334-00-00
Required: 1
NUT, ADJUSTING
$6.37
You save $1.12

12
Yamaha Motors
Bolt97017-06025-00
Required: 1
BOLT
Supersedes: 97007-06025-00
$3.87
You save $0.68

13
Yamaha Motors
Plate Washer90201-06380-00
Required: 1
WASHER, PLATE
$0.55
You save $0.10

14
Yamaha Motors
COLLAR90387-07598-00
Required: 1
COLLAR
Supersedes: 90387-06299-00
$5.52
You save $0.97

15
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 3
GROMMET
Supersedes: 90480-14102-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors YF200S (5VM5) [020] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/OD2uEgKG.png)
