2003 ATV YFM350X - YFM350X (5NFA) [020] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

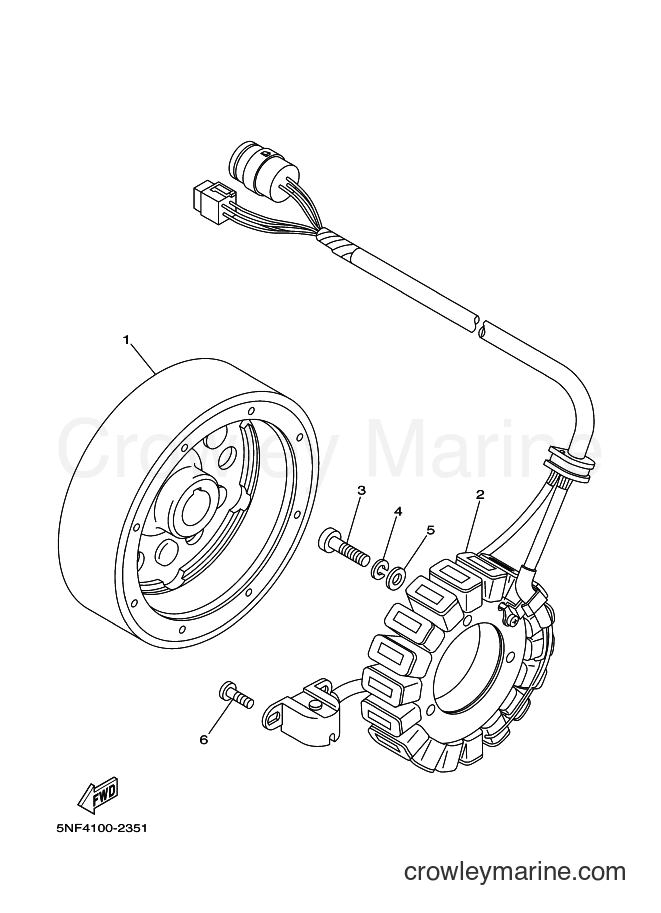

Yamaha Motors YFM350X (5NFA) [020] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly5NF-81450-01-00
Required: 1
ROTOR ASSY
Supersedes: 5NF-81450-00-00
Cross Ship
Leaves in 2-5 days
$287.99
$244.79
You save $43.20
More details
STATOR ASSY
2
STATOR ASSY5NF-81410-01-00
Required: 1
STATOR ASSY
Supersedes: 5NF-81410-00-00
Cross Ship
Leaves in 2-5 days
$388.99
$330.64
You save $58.35
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
