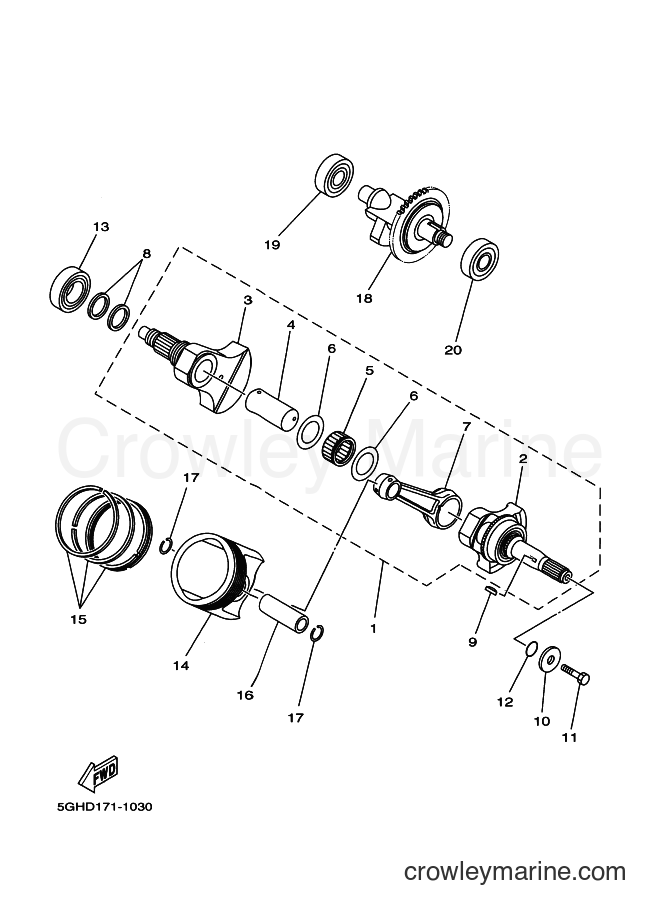

2001 ATV YFM400A - YFM400A (5HA8) [010] CRANKSHAFT & PISTON diagram

1
Yamaha Motors
Crankshaft Assembly5GH-11400-00-00
Required: 1
CRANKSHAFT ASSY
$535.49
You save $94.50

2
Yamaha Motors
Crank Sub Assembly 35GH-11403-09-00
Required: 1
CRANK 1
Supersedes: 5GH-W1141-00-00
$277.09
You save $48.90

3
Yamaha Motors
Crank Sub Assembly5GH-11402-09-00
Required: 1
CRANK 2
Supersedes: 5GH-W1142-00-00
$304.29
You save $53.70
$42.49
You save $7.50
$101.14
You save $17.85

6
Yamaha Motors
Plate Washer90201-356K1-00
Required: 2
WASHER, PLATE
$14.02
You save $2.47

7
Yamaha Motors
Connecting Rod5GH-11651-01-00
Required: 1
ROD, CONNECTING
Supersedes: 5GH-11651-00-00
$140.24
You save $24.75
$40.79
You save $7.20

9
Yamaha Motors
Woodruff Key90280-05001-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-05048-00
$11.47
You save $2.02

10
Yamaha Motors
Plate Washer90201-10321-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42
$5.52
You save $0.97
$8.07
You save $1.42
$67.14
You save $11.85

14
Yamaha Motors
Piston (1.00MM O/S)5GH-11638-00-00
Required: 1
PISTON (1.00MM O/S)
$107.09
You save $18.90

14
Yamaha Motors
Piston5GH-11636-00-00
Required: 1
PISTON (0.50MM O/S)
$101.14
You save $17.85
$140.24
You save $24.75

15
Yamaha Motors
Piston Ring Set (Standard)5GH-11603-00-00
Required: 1
PISTON RING SET (STD)
$58.64
You save $10.35

15
Yamaha Motors
Piston Ring Set5GH-11605-00-00
Required: 1
PISTON RING SET (0.50MM O/S)
$58.64
You save $10.35

15
Yamaha Motors
Piston Ring Set 15GH-11607-00-00
Required: 1
PISTON RING SET (1.00MM O/S)
$63.74
You save $11.25
$32.29
You save $5.70
$7.22
You save $1.27
$239.69
You save $42.30

19
Yamaha Motors
BEARING93306-30302-00
Required: 1
BEARING
Supersedes: 93306-30315-00
$42.49
You save $7.50

20
Yamaha Motors
BEARING93306-30421-00
Required: 1
BEARING
Supersedes: 93306-30438-00
$61.19
You save $10.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
