All diagrams for this model

2001 ATV YFM250 - YFM250 (4XEC) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

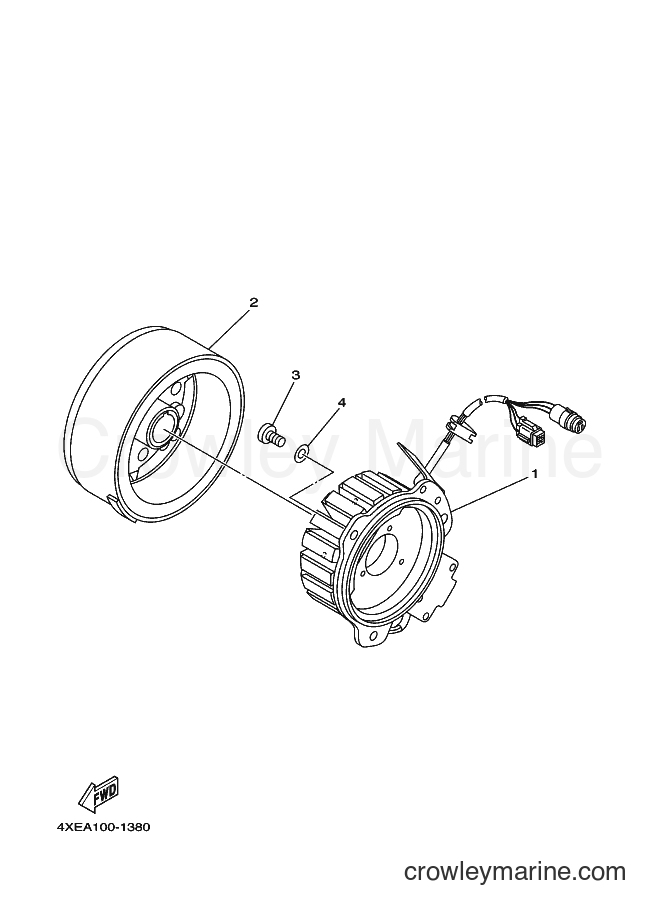

Yamaha Motors YFM250 (4XEC) [010] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly4XE-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$622.99
$529.54
You save $93.45
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly4XE-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$269.27
$228.88
You save $40.39
More details
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 3
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
